ILX569K

Features: • Number of effective pixels: 32040 pixels (5340 pixels × 6)• Pixel size: 4µm × 4µm (4µm pitch)• Distance between main line: 48µm (12 lines)• Distance between main line and sub line: 8µm (2 lines)• Single-sided readout• Ul...

product image

ILX569K Picture
See larger image
SeekIC No. : 004374328 Detail

ILX569K: Features: • Number of effective pixels: 32040 pixels (5340 pixels × 6)• Pixel size: 4µm × 4µm (4µm pitch)• Distance between main line: 48µm (12 lines)•...

ILX569K Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ILX569K
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Number of effective pixels: 32040 pixels (5340 pixels × 6)
• Pixel size: 4µm × 4µm (4µm pitch)
• Distance between main line: 48µm (12 lines)
• Distance between main line and sub line: 8µm (2 lines)
• Single-sided readout
• Ultra low lag
• Single 12V power supply
• Maximum data rate: 8MHz/Color
• Input clock pulse: CMOS 5V drive
• Number of output: 3 (R, G, B)
• Package: 22 pin Plastic-DIP (400mil)

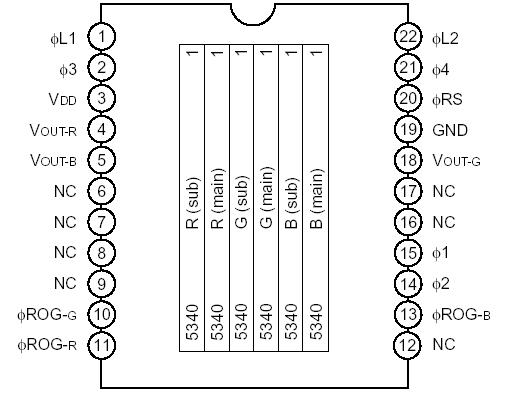

Pinout

Connection Diagram


Specifications

Supply voltage VDD  . . . . . . . . . . . . . . . .15 V
Operating temperature  . . . .10 to +55 °C


Description

The ILX569K is a reduction type CCD linear sensor developed for color image scanner. This sensor reads A4-size documents at a density of 600 DPI and 1200 DPI.
