ILX503A

Features: • Number of effective pixels: 2048 pixels• Pixel size: 14µm ×14µm (14µm pitch)• Built-in timing generator and clock-drivers• Ultra low lag• Maximum clock frequency: 5MHzPinoutSpecificationsSupply voltage .................. VDD1 11 VSupply v...

product image

ILX503A Picture
See larger image
SeekIC No. : 004374292 Detail

ILX503A: Features: • Number of effective pixels: 2048 pixels• Pixel size: 14µm ×14µm (14µm pitch)• Built-in timing generator and clock-drivers• Ultra low lag• ...

ILX503A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ILX503A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Number of effective pixels: 2048 pixels
• Pixel size: 14µm ×14µm (14µm pitch)
• Built-in timing generator and clock-drivers
• Ultra low lag
• Maximum clock frequency: 5MHz

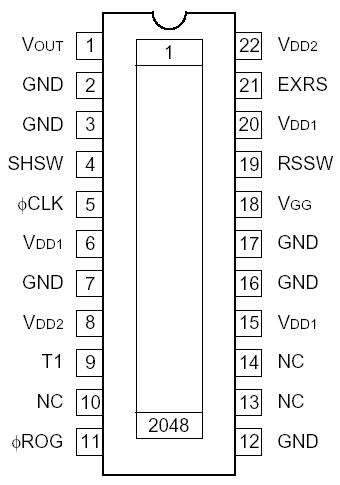

Pinout

Connection Diagram


Specifications

Supply voltage .................. VDD1 11 V
Supply voltage ...................VDD2 6 V
Operating temperature ...........10 to +55 °C
Storage temperature ............30 to +80 °C


Description

The ILX503A is a reduction type CCD linear sensor designed for facsimile, image scanner and OCR use. This sensor reads B4 size documents at a density of 200 DPI (Dot Per Inch). A built-in timing generator and clock-drivers of the ILX503A ensure direct drive at 5V logic for easy use.
