ILX558K

Features: • Number of effective pixels: 16020 pixels (5340 pixels × 3)• Pixel size: 4µm × 4µm (4µm pitch)• Distance between line: 32µm (8 lines)• Single-sided readout• Ultra low lag/High sensitivity• Single 12V power supply• Maximum...

product image

ILX558K Picture
SeekIC No. : 004374327 Detail

ILX558K: Features: • Number of effective pixels: 16020 pixels (5340 pixels × 3)• Pixel size: 4µm × 4µm (4µm pitch)• Distance between line: 32µm (8 lines)• Sing...

floor Price/Ceiling Price

Part Number:
ILX558K
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Number of effective pixels: 16020 pixels (5340 pixels × 3)
• Pixel size: 4µm × 4µm (4µm pitch)
• Distance between line: 32µm (8 lines)
• Single-sided readout
• Ultra low lag/High sensitivity
• Single 12V power supply
• Maximum data rate: 10MHz/Color
• Input clock pulse: CMOS 5V drive
• Number of output: 3 (R, G, B)
• Package: 22-pin Plastic DIP (400mil)

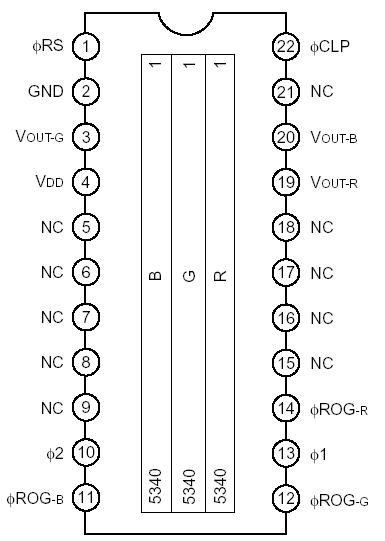

Pinout

  Connection Diagram


Specifications

Supply voltage VDD  . . . . . . . . . . . . . . . .15 V
Operating temperature  . . . .10 to +55 °C



Description

The ILX558K is a reduction type CCD linear sensor developed for color image scanner. This sensor reads A4-size documents at a density of 600DPI.
