Product Details

Description



Features:

• Number of effective pixels: 32040 pixels (10680 pixels × 3)
• Pixel size: 3.5µm × 3.5µm (3.5µm pitch)
• Distance between line: 28µm (8 lines)
• Single-sided readout
• Ultra low lag
• Single 12V power supply
• Maximum data rate: 5MHz/Color
• Input Clock Pulse: CMOS 5V drive
• Number of output 3 (R, G, B)
• Package: 22 pin Plastic DIP (400mil)



Pinout

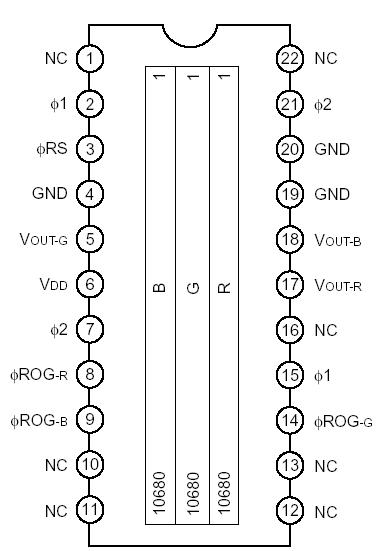

  Connection Diagram


Specifications

Supply voltage VDD  . . . . . . . . . . . . . . . 15 V
Operating temperature  . . . 10 to +55 °C



Description

The ILX555K is a reduction type CCD linear sensor developed for color image scanner. This sensor reads A4-size documents at a density of 1200DPI.
