ILX554B

Features: • Number of effective pixels: 2048 pixels• Pixel size: 14µm × 56µm (14µm pitch)• Single 5V power supply• Ultra-high sensitivity• Built-in timing generator and clock-drivers• Built-in sample-and-hold circuit• Maximum clock freque...

product image

ILX554B Picture
See larger image
SeekIC No. : 004374325 Detail

ILX554B: Features: • Number of effective pixels: 2048 pixels• Pixel size: 14µm × 56µm (14µm pitch)• Single 5V power supply• Ultra-high sensitivity• Built-in ti...

ILX554B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ILX554B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Number of effective pixels: 2048 pixels
• Pixel size: 14µm × 56µm (14µm pitch)
• Single 5V power supply
• Ultra-high sensitivity
• Built-in timing generator and clock-drivers
• Built-in sample-and-hold circuit
• Maximum clock frequency: 2MHz

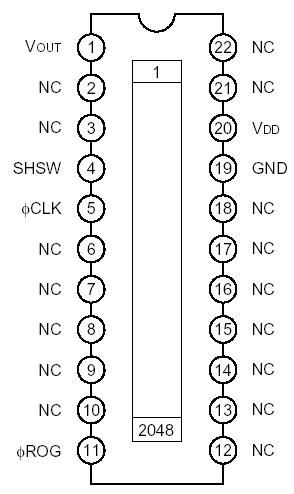

Pinout

Connection Diagram


Specifications

Supply voltage VDD . . . . . . . . . . . . . . . . 6 V
Operating temperature  . . .10 to +60 °C
Storage temperature  . . . . 30 to +80 °C


Description

The ILX554B is a rectangular reduction type CCD linear image sensor designed for bar code POS hand scanner and optical measuring equipment use. A built-in timing generator and clock-drivers ensure single 5V power supply for easy use.
