Product Details

Description



Features:

• Number of effective pixels: 5150 pixels
• Pixel size: 7µm × 7µm (7µm pitch)
• Clamp circuit is on-chip
• Ultra high sensitivity/Ultra low lag
• Maximum data rate: 16MHz
• Single 12V power supply
• Input clock pulse: CMOS 5V drive
• Package: 22 pin Plastic DIP (400mil)

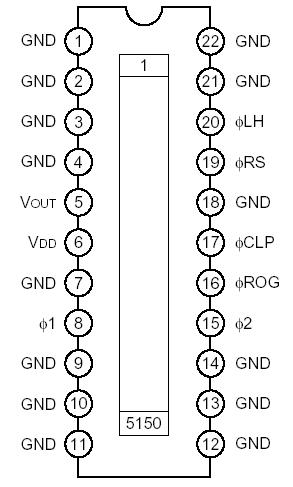

Pinout

  Connection Diagram


Specifications

Supply voltage VDD  . . . . . . . . . . . . . . . .15 V
Operating temperature  . . . .10 to +60 °C
Storage temperature  . . . . . 30 to +80 °C



Description

The ILX553A is a reduction type CCD linear sensor developped for DPPC, multifunction printers. This sensor reads A4-size documents at a density of 600 DPI at high speed of 16MHZ.
