ILX551B

Features: • Number of effective pixels: 2048 pixels• Pixel size: 14µm × 14µm (14µm pitch)• Built-in timing generator and clock-drivers• Ultra low lag• Maximum clock frequency: 5MHzPinoutSpecifications• Supply voltage VDD1. . . . . . . . . . . ....

product image

ILX551B Picture
See larger image
SeekIC No. : 004374321 Detail

ILX551B: Features: • Number of effective pixels: 2048 pixels• Pixel size: 14µm × 14µm (14µm pitch)• Built-in timing generator and clock-drivers• Ultra low lag•...

ILX551B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ILX551B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Number of effective pixels: 2048 pixels
• Pixel size: 14µm × 14µm (14µm pitch)
• Built-in timing generator and clock-drivers
• Ultra low lag
• Maximum clock frequency: 5MHz

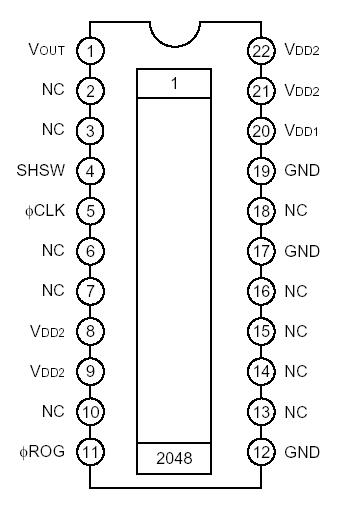

Pinout

Connection Diagram


Specifications

• Supply voltage VDD1  . . . . . . . . . . . . . . .. .11 V
• Supply voltage VDD2  . . . . . . . . . . . . . . .  . .6 V
• Operating temperature  . . . .. .10 to +55 °C
• Storage temperature  . . . . . . .30 to +80 °C


Description

The ILX551B is a reduction type CCD linear sensor designed for facsimile, image scanner and OCR use. This sensor reads B4 size documents at a density of 200DPI (Dot Per Inch). A built-in timing generator and clock-drivers ensure direct drive at 5V logic for easy use.
