Product Details

Description



Features:

• Number of effective pixels: 2048 pixels
• Pixel size: 14µm ×14µm (14µm pitch)
• Built-in timing generator and clock-drivers
• Ultra low lag
• Maximum clock frequency: 5MHz

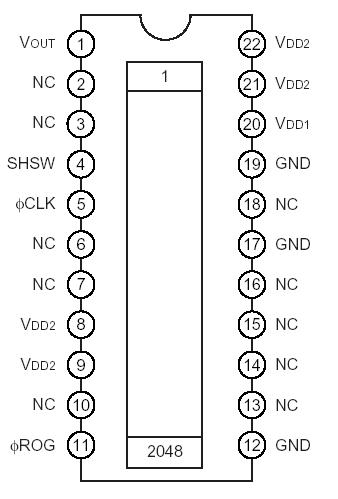

Pinout

  Connection Diagram


Specifications

Supply voltage .............  VDD1 11 V
Supply voltage .............. VDD2 6 V
Operating temperature ...... 10 to +55 °C
Storage temperature ....... 30 to +80 °C



Description

The ILX551A is a reduction type CCD linear sensor designed for facsimile, image scanner and OCR use. This sensor reads B4 size documents at a density of 200DPI (Dot Per Inch). A built-in timing generator and clock-drivers ensure direct drive at 5V logic for easy use.
