ILX547K

Features: • Number of effective pixels: 8100 pixels (2700 pixels×3)• Pixel size: 8µm×8µm (8µm pitch)• Distance between line: 32µm (4 lines)• Maximum data rate: 6MHz (2MHz ×3)• Built-in clamp circuit• Low lag/High sensitivity• Single...

product image

ILX547K Picture
See larger image
SeekIC No. : 004374317 Detail

ILX547K: Features: • Number of effective pixels: 8100 pixels (2700 pixels×3)• Pixel size: 8µm×8µm (8µm pitch)• Distance between line: 32µm (4 lines)• Maximum d...

ILX547K Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ILX547K
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Number of effective pixels: 8100 pixels (2700 pixels×3)
• Pixel size: 8µm×8µm (8µm pitch)
• Distance between line: 32µm (4 lines)
• Maximum data rate: 6MHz (2MHz ×3)
• Built-in clamp circuit
• Low lag/High sensitivity
• Single 5V power supply
• Input clock pulse: CMOS 5V drive
• Number of output: 3 (R, G, B)
• Package: 22 pin Plastic DIP (400mil)


Pinout

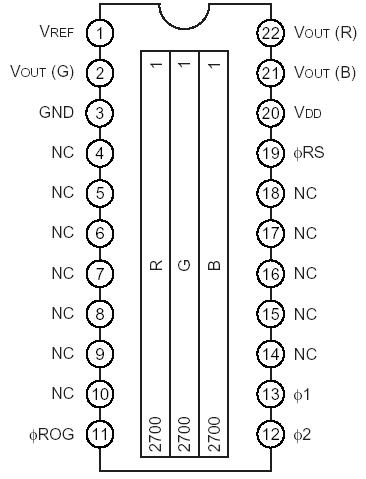

Connection Diagram


Specifications

Supply voltage ..................  VDD 6 V
Operating temperature ..........10 to +60 °C
Storage temperature ...........30 to +80 °C


Description

The ILX547K is a reduction type CCD linear sensor developed for color image scanner. This sensor reads A4-size documents at a density of 300DPI.

The distance between lines is only 4 line (32µm). The power supply of this device is single 5V.
