ILX535K

Features: • Number of effective pixels: 15900 pixels (5300 pixels×3)• Pixel size: 8µm×8µm (8µm pitch)• Distance between line: 32µm (4 Lines)• Number of output 3 (R, G, B)• Single-sided readout• Clamp circuit are on-chip• Ultra high ...

product image

ILX535K Picture
See larger image
SeekIC No. : 004374315 Detail

ILX535K: Features: • Number of effective pixels: 15900 pixels (5300 pixels×3)• Pixel size: 8µm×8µm (8µm pitch)• Distance between line: 32µm (4 Lines)• Number o...

ILX535K Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ILX535K
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Number of effective pixels: 15900 pixels (5300 pixels×3)
• Pixel size: 8µm×8µm (8µm pitch)
• Distance between line: 32µm (4 Lines)
• Number of output 3 (R, G, B)
• Single-sided readout
• Clamp circuit are on-chip
• Ultra high sensitivity/Ultra low lag
• Single 12V power supply
• Maximum data rate: 9MHz (3MHz×3)
• Input Clock Pulse: CMOS 5V drive
• Package: 22 pin Plastic-DIP (400 mil)

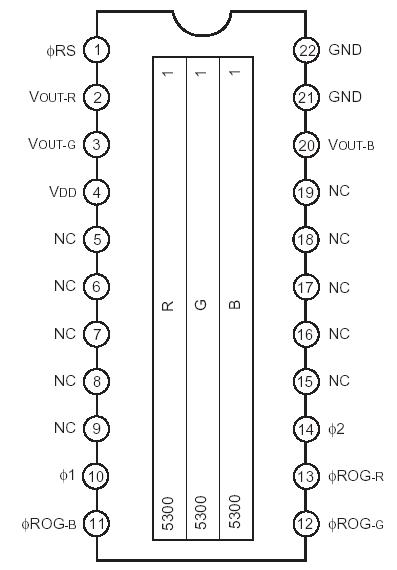

Pinout

Connection Diagram


Specifications

Supply voltage................. VDD 15 V
Operating temperature .........10 to +55 °C
Storage temperature ..........30 to +80 °C


Description

The ILX535K is a reduction type CCD linear sensor developed for color image scanner. The distance between lines is only 4 line (32µm). This sensor reads A4-size documents at a density of 600DPI.
