Product Details

Description



Features:

• Number of effective pixels: 7500 pixels
• Pixel size: 7µm×7µm (7µm pitch)
• Clamp circuit are on-chip
• Signal output phase of two-output simultaneous-output (alternate-output is available)
• Ultra high sensitivity/Ultra low lag
• Max Data Rate: 40MHz
• Single 12V power supply
• Input Clock Pulse: CMOS 5V drive
• Package: 28 pin Cer-DIP (400mil)



Pinout

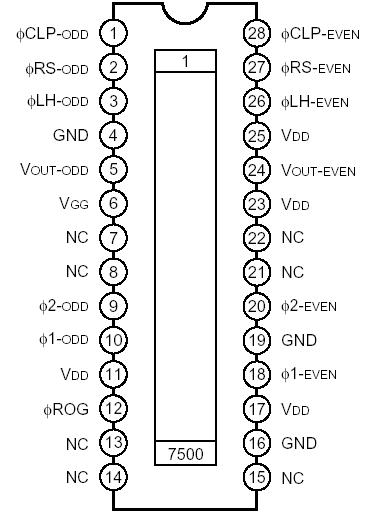

  Connection Diagram


Specifications

Supply voltage VDD  . . . . . . . . . . . . . . . .15 V
Operating temperature  . . . .10 to +60 °C
Storage temperature  . . . . . 30 to +80 °C



Description

The ILX532A is a reduction type CCD linear sensor developed for high resolution copiers. This sensor reads A3-size documents at a density of 600DPI, at high speed.
