ILX522K

Features: • Number of effective pixels: 2048 ×2pixels• Pixel size Red/Blue pixel: 14µm ×12µm (14µm pitch) Green pixel: 14µm ×14µm (14µm pitch)• Built-in timing generator, clock-drivers• Ultra-low lag• Good linearity• High sens...

product image

ILX522K Picture
See larger image
SeekIC No. : 004374305 Detail

ILX522K: Features: • Number of effective pixels: 2048 ×2pixels• Pixel size Red/Blue pixel: 14µm ×12µm (14µm pitch) Green pixel: 14µm ×14µm (14µm pitch)• ...

ILX522K Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ILX522K
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Number of effective pixels: 2048 ×2pixels
• Pixel size Red/Blue pixel: 14µm ×12µm (14µm pitch) Green pixel: 14µm ×14µm (14µm pitch)
• Built-in timing generator, clock-drivers
• Ultra-low lag
• Good linearity
• High sensitivity
• Input Clock Pulse: CMOS 5V drive


Pinout

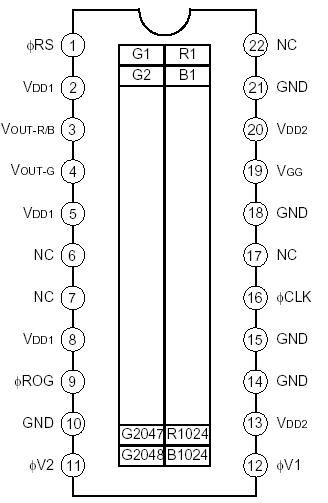

Connection Diagram


Specifications

Supply voltage  . . . . . .VDD1 11 V
Supply voltage  . . . . . . .VDD2 6 V


Description

The ILX522K is a reduction type CCD linear sensor designed for color image scanner use. This sensor reads B4 size documents at a density of 200 DPI. (Dot Per Inch), and has 2lines analog memories to adjust the position of green line and red/blue line. A built-in timing generator and clockdrivers ensure direct drive at 5V logic.
