Product Details

Description



Features:

• Number of effective pixels: 21234 pixels (7078 pixels ×3)
• Pixel size: 8µm×8µm (8µm pitch)
• Distance between line: 64µm (8 Lines)
• Single-sided readout
• Ultra low lag / Ultra high sensitivity
• Single 12V power supply
• Input clock pulse: CMOS 5V drive
• Number of output 3 (R, G, B)
• Package: 24 pin DIP (400 mil)



Pinout

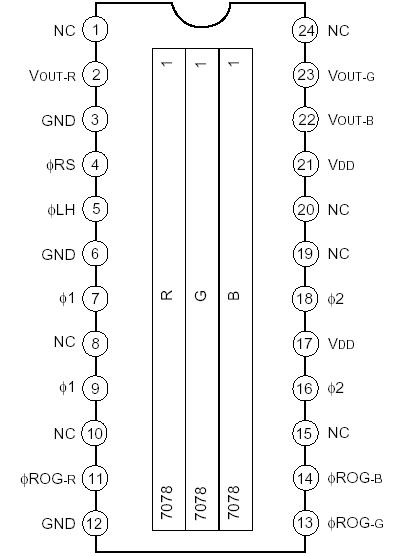

  Connection Diagram


Specifications

Supply voltage  . . . . . . . . . . . . . . . . . .VDD 15 V
Operating temperature  . . . . . .10 to +55 °C
Storage temperature  . . . . . . . 30 to +80 °C



Description

The ILX520K is a reduction type CCD linear sensor developing for color image scanner. This sensor reads A3-size documents at a density of 600 DPI.
