ILX516K

Features: • Number of effective pixels:10944 pixels (3648 pixels×3)• Pixel size: 8µm×8µm (8µm pitch)• Distance between line: 64µm (8 Lines)• Single-sided readout• Ultra low lag / High sensitivity• Single 12V power supply• Input cloc...

product image

ILX516K Picture
SeekIC No. : 004374300 Detail

ILX516K: Features: • Number of effective pixels:10944 pixels (3648 pixels×3)• Pixel size: 8µm×8µm (8µm pitch)• Distance between line: 64µm (8 Lines)• Single-si...

floor Price/Ceiling Price

Part Number:
ILX516K
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Number of effective pixels:10944 pixels (3648 pixels×3)
• Pixel size: 8µm×8µm (8µm pitch)
• Distance between line: 64µm (8 Lines)
• Single-sided readout
• Ultra low lag / High sensitivity
• Single 12V power supply
• Input clock pulse: CMOS 5V drive
• Number of output 3 (R, G, B)
• Package: 22 pin cer-DIP (400 mil)

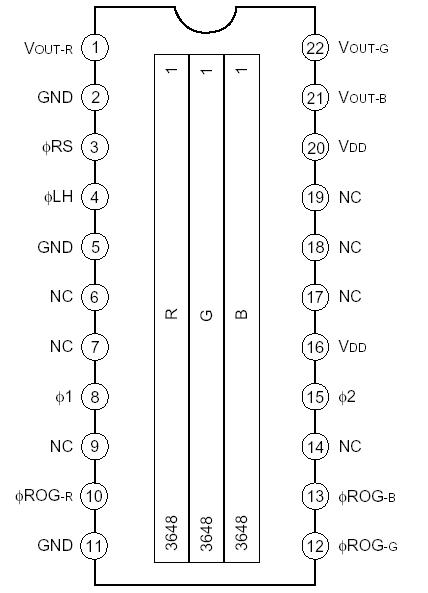

Pinout

  Connection Diagram


Specifications

Supply voltage ................VDD 15 V
Operating temperature ........10 to +55 °C
Storage temperature .........30 to +80 °C



Description

The ILX516K is a reduction type CCD linear sensor developed for color image scanner. This sensor reads legal-size documents at a density of 400 DPI.
