ILX514

Features: • Number of effective pixels: 3918 pixels• Pixel size: 7µm×7µm (7µm pitch)• Built-in timing generator and clock-drivers• Ultra low lag/ultra high sensitivity/low dark output• Single output method• Maximum clock frequency: 5MHzPinoutSp...

product image

ILX514 Picture
See larger image
SeekIC No. : 004374299 Detail

ILX514: Features: • Number of effective pixels: 3918 pixels• Pixel size: 7µm×7µm (7µm pitch)• Built-in timing generator and clock-drivers• Ultra low lag/ultra high ...

ILX514 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ILX514
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Number of effective pixels: 3918 pixels
• Pixel size: 7µm×7µm (7µm pitch)
• Built-in timing generator and clock-drivers
• Ultra low lag/ultra high sensitivity/low dark output
• Single output method
• Maximum clock frequency: 5MHz


Pinout

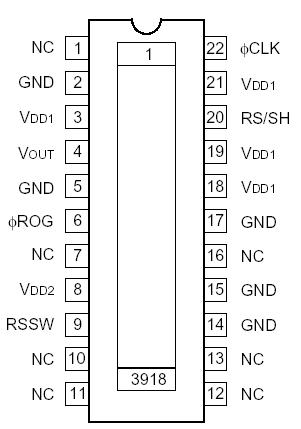

Connection Diagram


Specifications

Supply voltage ................ VDD1 11 V
Supply voltage .................VDD2 6 V
Operating temperature .........10 to +60 °C
Storage temperature ..........30 to +80 °C


Description

The ILX514 is a reduction type CCD linear sensor developed for high resolution facsimiles and copiers. This sensor reads A4-size documents at a density of 400 DPI (Dot Per Inch). A built-in timing generator and clock-drivers ensure direct drive at 5V logic for easy use. In addition, reset pulse can be switched between internal generation and external input.
