ILX512

Features: • Number of effective pixels: 7500 pixels• Pixel size: 7 m*7 m (7m pitch)• Signal output phase of two-output: Simultaneous output (Alternate output is available)• Ultra-high sensitivity and ultra-low lag• Max data rate: 40 MHz• Single 12 V power supply...

product image

ILX512 Picture
See larger image
SeekIC No. : 004374298 Detail

ILX512: Features: • Number of effective pixels: 7500 pixels• Pixel size: 7 m*7 m (7m pitch)• Signal output phase of two-output: Simultaneous output (Alternate output is available)• U...

ILX512 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ILX512
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Number of effective pixels: 7500 pixels
• Pixel size: 7 m *7 m (7m pitch)
• Signal output phase of two-output:
   Simultaneous output (Alternate output is available)
• Ultra-high sensitivity and ultra-low lag
• Max data rate: 40 MHz
• Single 12 V power supply
• Input clock pulse: CMOS 5 V drive
• Package: 24-pin DIP (400 mil

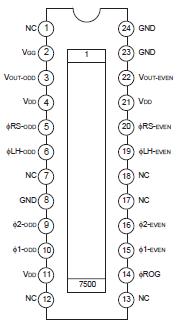

Pinout

Connection Diagram


Specifications

• Supply voltage VDD ........................15 V
• Operating temperature ...10 to +60 °C
• Storage temperature ......30 to +80 °C


Description

The ILX512 is a reduction type CCD linear sensor developed for high resolution copiers. This sensor reads A3-size documents at a density of 600 DPI at high speed.
