Product Details

Description



Features:

• Number of effective pixels: 5150 pixels
• Pixel size: 7 µm×7 µm (7 µm pitch)
• Signal output phase of two-output simultaneous-output (alternate-output is available)
• Ultra high sensitivity/Ultra low lag
• Max Data Rate: 40 MHz
• Single 12 V power supply
• Input Clock Pulse: CMOS 5V drive
• Package: 22 pin cer-DIP (400 mil)



Pinout

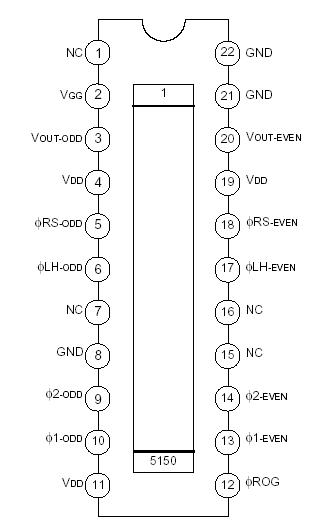

  Connection Diagram


Specifications

Supply voltage .................VDD 15 V
Operating temperature .........10 to +60 °C
Storage temperature ..........30 to +80 °C



Description

The ILX510 is a reduction type CCD linear sensor developed for high resolution copiers. This sensor reads A3-size documents at a density of 400 DPI, and A4-size documents at a density of 600 DPI at high speed.
