ICX098AL

Features: • Progressive scan allows individual readout of the image signals from all pixels.• High horizontal and vertical resolution (both approx. 480TV-lines) still image without a mechanical shutter.• Supports monitoring mode• Square pixel• Supports VGA format̶...

product image

ICX098AL Picture
See larger image
SeekIC No. : 004371440 Detail

ICX098AL: Features: • Progressive scan allows individual readout of the image signals from all pixels.• High horizontal and vertical resolution (both approx. 480TV-lines) still image without a mec...

ICX098AL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICX098AL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Progressive scan allows individual readout of the image signals from all pixels.
• High horizontal and vertical resolution (both approx. 480TV-lines) still image without a mechanical shutter.
• Supports monitoring mode
• Square pixel
• Supports VGA format
• Horizontal drive frequency: 12.27MHz
• No voltage adjustments (reset gate and substrate bias are not adjusted.)
• High resolution, high sensitivity, low dark current
• Continuous variable-speed shutter
• Low smear
• Excellent antiblooming characteristics
• Horizontal register: 3.3V drive
• 14-pin high precision plastic package (enables dual-surface standard)


Pinout

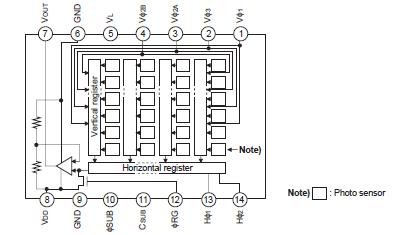

Connection Diagram


Specifications

Item

 Ratings Unit Remarks
Against SUB VDD, VOUT, RG SUB 40 to +10 V
V2A, V2B SUB 50 to +15 V
V1, V3, VL SUB 50 to +0.3 V
H1, V2, GND SUB 40 to +0.3 V
CSUB SUB 25 to V
Against GND VDD, VOUT, RG, CSUB GND 0.3 to +18 V
V1, V2A, V2B, V3 GND 10 to +18 V
H1, H2 GND 10 to +5 V
Against VL V2A, V2B VL 0.3 to +28 V
V1, V3, H1, H2, GND VL 0.3 to +15 V
Between input clock
pins		 Voltage difference between vertical clock input pins to +15 V *2
H1 H2 5 to +5 V
H1, H2 V4 13 to +13 V
Storage temperature 30 to +80 °C
Operating temperature 10 to +60 °C
*2 +24V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX098AL is a diagonal 4.5mm (Type 1/4) interline CCD solid-state image sensor with a square pixel array which supports VGA format. Progressive scan allows all pixels signals to be output independently within approximately 1/30 second. Also, the adoption of monitoring mode supports 60 frame/s. This chip features an electronic shutter with variable charge-storage time which makes it possible to realize full-frame still image without a mechanical shutter. Further, high sensitivity and low dark current of the ICX098AL are achieved through the adoption of HAD (Hole- Accumulation Diode) sensors.

This chip of the ICX098AL is suitable for applications such as seconddimensional bar-code reader, PC input cameras, etc.
