ICX038DLB

Features: • Low smear (20dB compared with the ICX038BLB)• High sensitivity (+3.0dB compared with the ICX038BLB)• High D range (+2.5dB compared with the ICX038BLB)• High S/N• High resolution and low dark current• Excellent antiblooming characteristics• Cont...

product image

ICX038DLB Picture
See larger image
SeekIC No. : 004371392 Detail

ICX038DLB: Features: • Low smear (20dB compared with the ICX038BLB)• High sensitivity (+3.0dB compared with the ICX038BLB)• High D range (+2.5dB compared with the ICX038BLB)• High S/N&#...

ICX038DLB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICX038DLB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low smear (20dB compared with the ICX038BLB)
• High sensitivity (+3.0dB compared with the ICX038BLB)
• High D range (+2.5dB compared with the ICX038BLB)
• High S/N
• High resolution and low dark current
• Excellent antiblooming characteristics
• Continuous variable-speed shutter
• Substrate bias:                          Adjustment free (external adjustment also possible with 6 to 14V)
• Reset gate pulse:                      5Vp-p adjustment free (drive also possible with 0 to 9V)
• Horizontal register:                   5V drive
• Maximum package dimensions: 13.2mm


Pinout

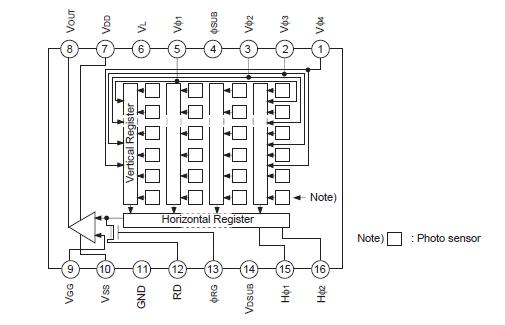

Connection Diagram


Specifications

Item

 Ratings Unit Remarks
Substrate clock SUB GND 0.3 to +50 V
Supply voltage VDD, VRD, VDSUB, VOUT, VSS GND 0.3 to +18 V
VDD, VRD, VDSUB, VOUT, VSS SUB 55 to +10 V
Clock input voltage V1, V2, V3, V4 GND 15 to +20 V
V1, V2, V3, V4 SUB to +10 V
Voltage difference between vertical clock input pins to +15 V *1
Voltage difference between horizontal clock input pins to +17 V
H1, H2 V4 17 to +17 V
RG, VGG GND 10 to +15 V
RG, VGG SUB 55 to +10 V
VL SUB 65 to +0.3 V
Pins other than GND and SUB VL 0.3 to +30 V
Storage temperature 30 to +80 °C
Operating temperature 10 to +60 °C
*1 +27V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX038DLB is an interline CCD solid-state image sensor suitable for EIA black-and-white video cameras with a diagonal 8mm (Type 1/2) system. Smear, sensitivity, D-range, S/N and other characteristics have been greatly improved compared with the ICX038BLB. High sensitivity and low dark current are achieved through the adoption of HAD (Hole-Accumulation Diode) sensors.

This chip features a field period readout system and an electronic shutter with variable chargestorage time. Also, this outline is miniaturized by using original package.

This chip of the ICX038DLB is compatible with and can replace the ICX038BLB.
