ICX038DNA

Features: • Low smear (20dB compared with the ICX038BNA)• High sensitivity (+3.0dB compared with the ICX038BNA)• High D range (+2.5dB compared with the ICX038BNA)• High S/N• High resolution and low dark current• Excellent antiblooming characteristics• Ye, ...

product image

ICX038DNA Picture
See larger image
SeekIC No. : 004371393 Detail

ICX038DNA: Features: • Low smear (20dB compared with the ICX038BNA)• High sensitivity (+3.0dB compared with the ICX038BNA)• High D range (+2.5dB compared with the ICX038BNA)• High S/N&#...

ICX038DNA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICX038DNA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low smear (20dB compared with the ICX038BNA)
• High sensitivity (+3.0dB compared with the ICX038BNA)
• High D range (+2.5dB compared with the ICX038BNA)
• High S/N
• High resolution and low dark current
• Excellent antiblooming characteristics
• Ye, Cy, Mg, and G complementary color mosaic filters on chip
• Continuous variable-speed shutter
• Substrate bias:           Adjustment free (external adjustment also possible with 6 to 14V)
• Reset gate pulse:       5Vp-p adjustment free (drive also possible with 0 to 9V)
• Horizontal register:     5V drive


Pinout

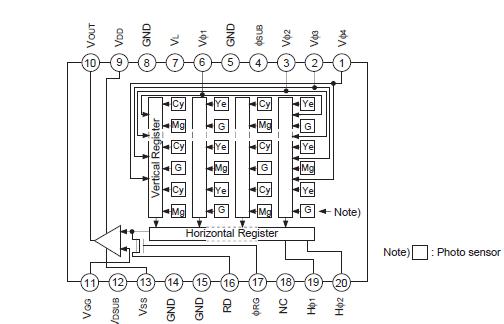

Connection Diagram


Specifications

Item

 Ratings Unit Remarks
Substrate clock SUB GND 0.3 to +50 V
Supply voltage

VDD, VRD, VDSUB, VOUT, VSS GND

 0.3 to +18 V
VDD, VRD, VDSUB, VOUT, VSS SUB 55 to +10 V
Clock input voltage V1, V2, V3 GND 15 to +20 V
V1, V2, V3 SUB to +10 V
Voltage difference between vertical clock input pins to +15 V *1
Voltage difference between horizontal clock input pins to +17 V
H1, H2 V4 17 to +17 V
RG, VGG GND 10 to +15 V
RG, VGG SUB 55 to +10 V
VL SUB 65 to +0.3 V
Pins other than GND and SUB VL 0.3 to +30 v
Storage temperature 30 to +80 °C
Operating temperature 10 to +60 °C
*1 +27V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX038DNA is an interline CCD solid-state image sensor suitable for NTSC color video cameras with a diagonal 8mm (Type 1/2) system. Smear, sensitivity, D-range, S/N and other characteristics have been greatly improved compared with the ICX038BNA. High sensitivity and low dark current are achieved through the adoption of Ye, Cy, Mg and G complementary color mosaic filters and HAD (Hole-Accumulation Diode) sensors.

This chip features a field period readout system and an electronic shutter with variable charge-storage time.

This chip of the ICX038DNA is compatible with and can replace the ICX038BNA.
