Features:

• Progressive scan allows individual readout of the image signals from all pixels.
• High vertical resolution (1024TV-lines) still image without a mechanical shutter.
• Square pixel unit cell
• Aspect ratio 5:4
• Horizontal drive frequency: 20.25MHz
• Reset gate bias is not adjusted.
• Substrate voltage: 5.5 to 12.5V
• Continuous variable-speed shutter
• High resolution, high sensitivity, low dark current
• Low smear
• Excellent antiblooming characteristics
• Horizontal register: 5V drive


Pinout

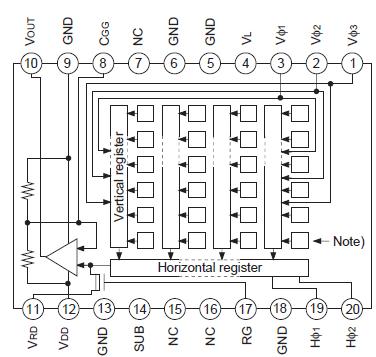

Connection Diagram


Specifications

Item
Ratings
Unit
Remarks
Substrate voltage SUBGND
0.3 to +55
V
Supply voltage VDD, VOUT, VRD, CGGGND
0.3 to +18
V
VDD, VOUT, VRD, CGGSUB
55 to +9
V
Vertical clock input voltage V1, V2, V3GND
15 to +16
V
V1, V2, V3SUB
to +10
V
Voltage difference between vertical clock input pins
to +15
V
*1
Voltage difference between horizontal clock input pins
to +16
V
H1, H2Vf3
16 to +16
V
H1, H2GND
10 to +15
V
H1, H2SUB
55 to +10
V
VLSUB
65 to +0.3
V
V2, V3VL
0.3 to +27.5
V
RGGND
0.3 to +20.5
V
V1, H1, H2, GNDVL
0.3 to +17.5
V
Storage temperature
30 to +80
Operating temperature
10 to +60
*1 +24V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX085AL is a diagonal 11mm (Type 2/3) interline CCD solid-state image sensor with a square pixel array. Progressive scan allows all pixels signals to be output independently within approximately 1/12 second. This chip features an electronic shutter with variable charge-storage time which makes it possible to realize full-frame still image without a mechanical shutter. High sensitivity and low dark current are achieved through the adoption of HAD (Hole-Accumulation Diode) sensors.

This chip of the ICX085AL is suitable for image input applications such as still cameras which require high resolution.
