Product Details

Description



Features:

• High sensitivity (+6dB compared with the ICX022BL)
• Low smear (20dB compared with the ICX022BL)
• High resolution, Low dark current
• Excellent antiblooming characteristics
• Continuous variable-speed shutter

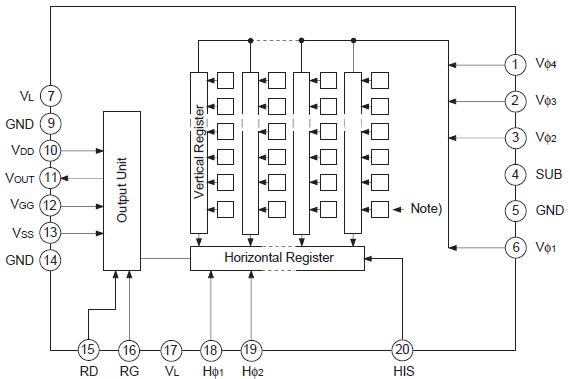

Pinout

Connection Diagram


Specifications

Item
Ratings
Unit
Remarks
Substrate voltage SUB GND
0.3 to +55
V
Supply voltage HIS, VDD, RD, VOUT, VSSGND
0.3 to +20
V
HIS, VDD, RD, VOUT, VSSSUB
55 to +10
V
Vertical clock input voltage Vertical clock input pinsGND
15 to +20
V
Vertical clock input pinsSUB
to +10
V
Voltage difference between vertical clock input pins
to +15
V
*1
Voltage difference between horizontal clock input pins
to +17
V
H1, H2 V4
17 to +17
V
H1, H2, RG, VGG GND
10 to +15
V
H1, H2, RG, VGG SUB
55 to +10
V
VL SUB
65 to +0.3
V
V1, V3, HIS, VDD, RD, VOUTVL
0.3 to +30
V
RG VL
0.3 to +24
V
V2, V4, VGG, VSS, H1, H2VL
0.3 to +20
V
Storage temperature
30 to +80
Operating temperature
10 to +60
*1 +27V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX082AL is an interline CCD solid-state image sensor suitable for EIA black-and-white video cameras with a diagonal 11mm (Type 2/3) system.

High sensitivity and low dark current are achieved through the adoption of HAD (Hole-Accumulation Diode) sensors.

This chip of the ICX082AL features a field period readout system and an electronic shutter with variable chargestorage time.
