Features:

• Supports electronic vibration stabilizer and electronic panning/tilting (33%/one side)
• Supports electronic zoom
• Supports DV standard SD mode and MPEG2 Main level (13.5MHz)
• Supports 16:9 wide aspect ratio (for both 18MHz and 5fsc)
• Supply voltage: 12V
• Horizontal register and reset gate: 2.7 to 3.6V drive
• No voltage adjustment (Reset gate and substrate bias are not adjusted.)
• High resolution, high sensitivity, low dark current and low smear
• Excellent antiblooming characteristics
• Continuous variable-speed shutter (1/60 to 1/10000s)
• Supports short exit pupil distance (Recommended range: 20 to 100mm)
• Ye, Cy, Mg and G complementary color mosaic filters on chip
• 16-pin high precision plastic package (both top and bottom surface reference possible)


Pinout

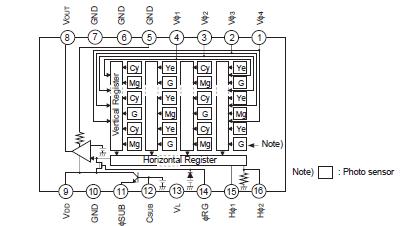

Connection Diagram


Specifications

Item

 Ratings Unit Remarks
Against SUB VDD, VOUT,RG SUB 40 to +10 V
V1, V3 SUB 50 to +15 V
V2, V4, VL SUB 50 to +0.3 V
H1, H2, GND SUB 40 to +0.3 V
CSUB SUB 25 to V
Against GND VDD, VOUT, RG, CSUB GND 0.3 to +18 V
V1, V2, V3, V4 GND 10 to +18 V
H1, H2 GND 10 to +5 V
Against VL V1, V3 VL 0.3 to +28 V
V2, V4, H1, H2, GND VL 0.3 to +15 V
Between input clock
pins		 Voltage difference between vertical clock input pins to +15 V *2
H1 H2 5 to +5 V
H1, H2 V4 13 to +13 V
Storage temperature 30 to +80 °C
Operating temperature 10 to +60 °C
*2 +24V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX080AK is an interline CCD solid-state image sensor suitable for NTSC color video cameras. This chip conforms to DV standard SD mode, and has the optimal number of pixels for MPEG2 Main level. While achieving a horizontal resolution of 450 TV lines, the area has been expanded 33% in both vertical and horizontal directions, making the chip suitable for electronic vibration stabilizer and electronic panning/tilting. In addition, complete 16:9 wide aspect ratio images are provided with a high picture quality without requiring vertical interpolation.

High sensitivity and low dark current of the ICX080AK are achieved through the adoption of Ye, Cy, Mg and G complementary color mosaic filters and HAD (Hole- Accumulation Diode) sensors.

This chip features a field period readout system and an electronic shutter with variable chargestorage time.

The package is a 16-pin DIP (Plastic), and both top and bottom surface reference can be assured at the same time.
