Product Details

Description



Features:

• High sensitivity and low dark current
• Low smear
• Excellent antiblooming characteristics
• Ye, Cy, Mg, and G complementary color mosaic filters on chip
• Horizontal register: 5V drive (drive frequency: 6.75MHz)
• Reset gate: 5V drive (no adjustment of bias)


Pinout

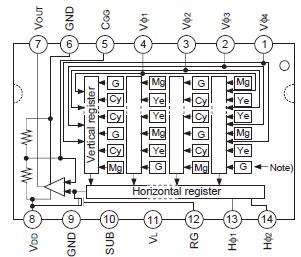

Connection Diagram


Specifications

Item Ratings Unit Remarks
Substrate voltage SUB GND 0.3 to +55 V
Supply voltage VDD, VOUT, CGG GND 0.3 to +18 V
VDD, VOUT, CGG SUB 55 to +12 V
Clock input
voltage		 V1, V2, V3, V4 GND 15 to +20 V
V1, V2, V3, V4 SUB to +12 V
Voltage difference between vertical clock input pins to +15 V *2
Voltage difference between horizontal clock input pins to +17 V
H1, H2 V4 17 to +17 V
H1, H2 GND 10 to +15 V
H1, H2 SUB 55 to +10 V
VL SUB 65 to +0.3 V
V1, V3, VDD, VOUT VL 0.3 to +27.5 V *3
RG GND 0.3 to +22.5 V
V2, V4, CGG, H1, H2, GND VL 0.3 to +17.5 V
Storage temperature 30 to +80
Operating temperature 10 to +60
*2 +27V (Max.) when clock width < 10s, clock duty factor < 0.1%.
*3 When CGG or GND (Pin 6) are grounded.
0.3 to + 17.5V when CGG and GND (Pin 6) are to be disconnected.


Description

The ICX077AK is an interline CCD solid-state image sensor suitable for PAL color video cameras.This device possesses a number of pixels that is compatible with both SIF and CIF, and offers excellent cost performance due to the adoption of an ultra-small image size and a 10 mm-square 14-pin plastic package. High sensitivity and low dark current are achieved through the use of Ye, Cy, Mg, and G complementary color mosaic filters and through the adoption of HAD (Hole-Accumulation Diode) sensors.

This chip of the ICX077AK features a field period readout system and an electronic shutter with variable chargestorage time.
