Product Details

Description



Features:

• High sensitivity and low dark current
• 6.75MHz horizontal drive frequency employed
• Electronic iris, backlight compensation function (when CXD2409 is used)
• Low smear
• Excellent antiblooming characteristics
• Horizontal register: 5V drive
• Reset gate: 5V drive (no bias adjustment)


Pinout

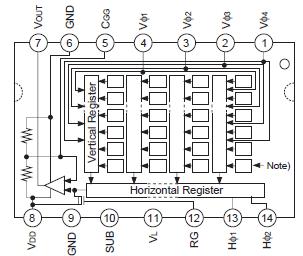

Connection Diagram


Specifications

Item
Ratings
Unit
Remarks
Substrate voltage SUB GND
0.3 to +55
V
Supply voltage VDD, VOUT, CGG GND
0.3 to +18
V
VDD, VOUT, CGG SUB
55 to +12
V
Clock input
voltage		 V1, V2, V3, V4 GND
15 to +20
V
V1, V2, V3, V4 SUB
to +12
V
Voltage difference between vertical clock input pins
to +15
V
*2
Voltage difference between horizontal clock input pins
to +17
V
H1, H2 V4
17 to +17
V
H1, H2 GND
10 to +15
V
H1, H2 SUB
55 to +10
V
VL SUB
65 to +0.3
V
V1, V3, VDD, VOUT VL
0.3 to +27.5
V
*3
RG GND
0.3 to +22.5
V
V2, V4, CGG, H1, H2, GND VL
0.3 to +17.5
V
Storage temperature
30 to +80
Operating temperature
10 to +60
*2 +27V (Max.) when clock width < 10s, clock duty factor < 0.1%.
*3 When CGG or GND (Pin 6) are grounded.
0.3 to +17.5V when CGG and GND (Pin 6) are to be disconnected.


Description

The ICX076AL is an interline CCD solid-state image sensor suitable for EIA black-and-white video cameras. High sensitivity and low dark current are achieved through the adoption of HAD (Hole-Accumulation Diode) sensors.

This chip of the ICX076AL features a field integration readout system and an electronic shutter with variable charge-storage time.

The package is a 10mm-square 14-pin DIP (Plastic).
