Features:

• Progressive scan allows individual readout of the image signals from all pixels.
• High vertical resolution (480TV-lines) still picture without mechanical shutter.
• Square pixel unit cell
• VGA format-compatible
• High resolution, high sensitivity, low dark current
• Continuous variable-speed shutter
• Low smear
• Excellent antiblooming characteristics
• Reset gate: 5V drive (bias: no adjustment)


Pinout

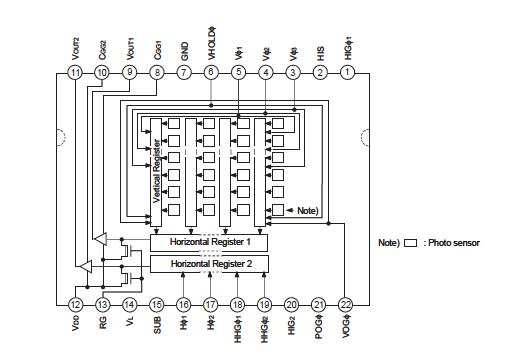

Connection Diagram


Specifications

Item Ratings Unit Remarks
Substrate voltage SUBGND 0.3 to +55 V
Supply voltage VDD, VOUT1, VOUT2, HIS, CGG1, CGG2 GND 0.3 to +18 V
VDD, VOUT1, VOUT2, HIS, CGG1, CGG2 SUB 55 to +10 V
Clock input voltage V1, V2, V3, VHOLD, VOG GND 15 to +20 V
V1, V2, V3, VHOLD, VOG SUB to +10 V
Voltage difference between vertical clock input pins to +15 V *1
Voltage difference between horizontal clock input pins to +17 V
H1, H2 VOG 17 to +17 V
H1, H2 GND 10 to +15 V
H1, H2 SUB 55 to +10 V
VLSUB 65 to +0.3 V
V2, V3, VDD, VOUT1, VOUT2, HIS, HIG1, HIG2, POG VL 0.3 to +27.5 v
RG GND 0.3 to +22.5 V
V1, CGG1, CGG2, H1, Hv2, HHG1, HHG2, VOG, VHOLD VL 0.3 to +17.5 V
Storage temperature 30 to +80 °C
Operating temperature 10 to +60 °C
*1 +27V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX074AL is an interline CCD solid-state image sensor suitable for EIA black-and-white video cameras. Progressive scan allows all pixels signals to be output independently within approximately 1/60 second. This chip features an electronic shutter with variable charge-storage time which makes it possible to realize full-frame still image without mechanical shutter. Individual pixels in a square matrix make this device suitable for image input and processing applications.

High sensitivity and low dark current of the ICX074AL are achieved through the adoption of HAD (Hole-Accumulation Diode) sensors.
