Product Details

Description



Features:

• High resolution, high sensitivity and low dark current
• Horizontal register: 3.6 to 5.0V drive
• No voltage adjustment (Reset gate and substrate bias are not adjusted.)
• Low smear
• Continuous variable-speed shutter


Pinout

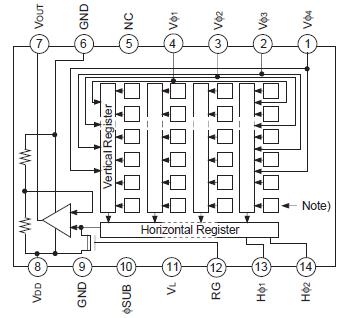

Connection Diagram


Specifications

Item
Ratings
Unit
Remarks
Substrate voltage SUB GND
0.3 to +40
V
Supply voltage HIS, VDD, RD, VOUT, VSSGND
0.3 to +18
V
HIS, VDD, RD, VOUT, VSSSUB
30 to +9
V
Vertical clock input voltage V1, V2, V3, V4 GND
15 to +16
V
V1, V2, V3, V4 SUB
to +10
V
Voltage difference between vertical clock input pins
to +15
V
*1
Voltage difference between horizontal clock input pins
to +16
V
H1, H2 V4
16 to +16
V
H1, H2, RG, VGG GND
10 to +15
V
H1, H2, RG, VGG SUB
55 to +10
V
VL SUB
65 to +0.3
V
V1, V3, HIS, VDD, RD, VOUTVL
0.3 to +27.5
V
RG GND
0.3 to +20.5
V
VGG, VSS, H1, H2, LH1 VL
0.3 to +17.5
V
Storage temperature
30 to +80
Operating temperature
10 to +60
*1 +24V (Max.) when clock width < 10s, clock duty factor < 0.1%.</bo


Description

The ICX069AL is an interline CCD solid-state image sensor suitable for CCIR black-and-white video cameras. High sensitivity and low dark current are achieved through the adoption of HAD (Hole-Accumulation Diode) sensors.

This chip of the ICX069AL features a field period readout system and an electronic shutter with variable charge-storage time.

The package is a 10mm-square 14-pin DIP (Plastic).
