Features:

• High resolution, high sensitivity and low dark current
• Horizontal register: 3.6 to 5.0V drive
• No voltage adjustment (Reset gate and substrate bias are not adjusted.)
• Low smear
• Excellent antiblooming characteristics
• Continuous variable-speed shutter
• Ye, Cy, Mg, and G complementary color mosaic filters on chip


Pinout

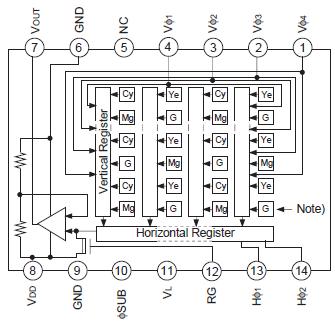

Connection Diagram


Specifications

Item
Ratings
Unit
Remarks
Substrate voltage SUB GND
0.3 to +40
V
Supply voltage VDD, VOUT, CGG GND
0.3 to +18
V
VDD, VOUT, CGG SUB
30 to +9
V
Clock input
voltage		 V1, V2, V3, V4 GND
15 to +16
V
V1, V2, V3, V4 SUB
to +110
V
Voltage difference between vertical clock input pins
to +15
V
*1
Voltage difference between horizontal clock input pins
to +16
V
H1, H2 V4
16 to +16
V
H1, H2 GND
10 to +15
V
H1, H2 SUB
55 to +10
V
VL SUB
65 to +0.3
V
V1, V3, VDD, VOUT VL
0.3 to +27.5
V
RG GND
0.3 to +20.5
V
V2, V4, CGG, H1, H2, GND VL
0.3 to +17.5
V
Storage temperature
30 to +80
Operating temperature
10 to +60
*1 +24V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX069AK is an interline CCD solid-state image sensor suitable for PAL color video cameras. High resolution is achieved through the use of Ye, Cy, Mg,and G complementary color mosaic filters. At the same time, high sensitivity and low dark current are achieved through the adoption of HAD (Hole-Accumulation Diode) sensors.

This chip of the ICX069AK features a field period readout system and an electronic shutter with variable charge-storage time.

The package is a 10mm-square 14-pin DIP (Plastic).
