ICX063AL

Features: • High resolution• Low smear• High sensitivity, low dark current• Excellent antiblooming characteristics• Continuous variable-speed shutterPinoutSpecifications Item Ratings Unit Remarks Substrate voltage SUB GND 0.3 to +55 V ...

product image

ICX063AL Picture
See larger image
SeekIC No. : 004371413 Detail

ICX063AL: Features: • High resolution• Low smear• High sensitivity, low dark current• Excellent antiblooming characteristics• Continuous variable-speed shutterPinoutSpecification...

ICX063AL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICX063AL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High resolution
• Low smear
• High sensitivity, low dark current
• Excellent antiblooming characteristics
• Continuous variable-speed shutter

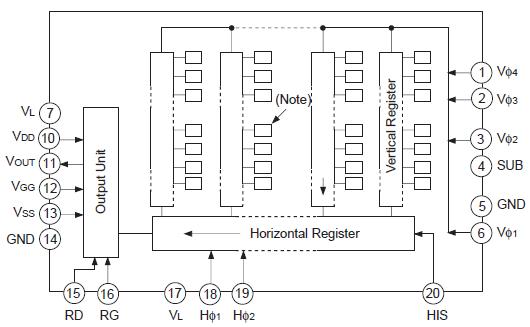

Pinout

Connection Diagram


Specifications

Item
Ratings
Unit
Remarks
Substrate voltage SUB GND
0.3 to +55
V
Supply voltage HIS, VDD, RD, VOUT, VSS GND
0.3 to +20
V
HIS, VDD, RD, VOUT, VSS SUB
55 to +10
V
Vertical, horizontal
clock input voltage		 V1,V2,V3,V4,H1,H2GND
15 to +20
V
V1,V2,V3,V4,H1,H2SUB
65 to +10
V
Voltage difference between vertical clock input pins
to +15
V
*1
Voltage difference between horizontal clock input pins
to +17
V
H1, H2 V4
17 to +17
V
RG, VGG GND
10 to +15
V
RG, VGG SUB
55 to +10
V
VL SUB
65 to +0.3
V
V1,V2,V3,V4,H1,H2,HIS,VDD,RD,VOUT,VSS,RG,VGGVL
0.3 to +30
V
Storage temperature
30 to +80
Operating temperature
10 to +60
*1 +27V (max.) when clock width < 10s and the clock duty factor < 0.1%.


Description

The ICX063AL is an interline CCD solid-state image sensor suitable for CCIR black-and-white video cameras with a diagonal 11mm (Type 2/3) system.

High sensitivity of the ICX063AL is achieved by adopting HAD (Hole-Accumulation Diode) sensors. The chip features a field period readout system and an electronic shutter with variable charge-storage time
