Features:

• High sensitivity (+3dB at F5.6, +4dB at F1.2 compared with ICX059AK)
• High resolution, low smear and low dark current
• Excellent antiblooming characteristics
• Continuous variable-speed shutter
• Ye, Cy, Mg, and G complementary color mosaic filters on chip
• Horizontal register:    5V drive
• Reset gate:                5V drive


Pinout

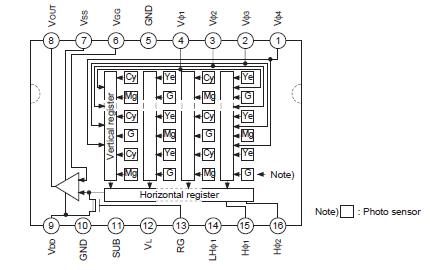

Connection Diagram


Specifications

Item

 Ratings Unit Remarks

Substrate voltage SUB GND

 0.3 to +55 V
Supply voltage VDD, VOUT, VSS GND 0.3 to +18 V
VDD, VOUT, VSS SUB 55 to +10 V
Vertical clock input voltage V1, V2, V3, V4 GND 15 to +20 V
V1, V2, V3, V4 SUB to +10 V
Voltage difference between vertical clock input pins to +15 V *1
Voltage difference between horizontal clock input pins to +17 V
H1, H2 V4 17 to +17 V
H1, H2, RG, VGG GND 10 to +15 V
H1, H2, RG, VGG SUB 55 to +10 V
VL SUB 65 to +0.3 V
V1, V2, V3, V4, VDD, VOUT VL 0.3 to +30 V
RG VL 0.3 to +24 V
VGG, VSS, H1, H2, VL 0.3 to +20 V
Storage temperature 30 to +80 °C
Operating temperature 10 to +60 °C
*1 +27V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX059CK is an interline CCD solid-state image sensor suitable for PAL color video cameras. Compared with the current product ICX059AK, sensitivity is improved drastically through the adoption of Super HAD CCD technology. High resolution is achieved through the use of Ye, Cy, Mg, and G complementary color mosaic filters.

This chip of the ICX059CK features a field period readout system and an electronic shutter with variable charge-storage time.
