Features:

• High sensitivity (+4dB at F8, +2dB at F1.2 compared with ICX055AL)
• High saturation signal (+1dB compared with ICX055AL)
• Low smear and low dark current
• Excellent antiblooming characteristics
• Continuous variable-speed shutter
• Horizontal register: 5V drive
• Reset gate: 5V drive



Pinout

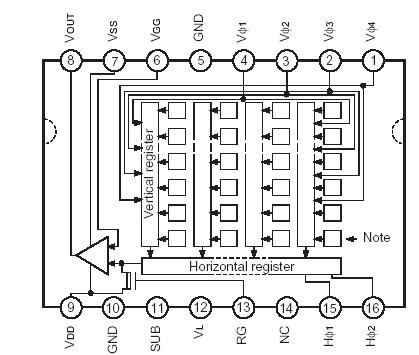

Connection Diagram


Specifications

Item Ratings Unit Remarks
Substrate clock SUB GND 0.3 to +36 V
Supply voltage VDD, VOUT, CGG, SUBCIR GND 0.3 to +18 V
VDD, VOUT, CGG, SUBCIR SUB 22 to +9 V
Clock input voltage V1, V2, V3 GND 15 to +16 V
V1, V2, V3 SUB to +10 V
Voltage difference between vertical clock input pins to +15 V *1
Voltage difference between horizongal clock input pins to +17 V
H1, H2 V3 17 to +17 V
H1, H2 GND 10 to +15 V
H1, H2 SUB 55 to +10 V
VL SUB 65 to +0.3 V
V2, V3 VL 0.3 to +27.5 V
RG GND 0.3 to +30 V
V1, H1, H2, GND VL 0.3 to +24 V
Storage temperature 30 to +20 °C
Performance guarantee temperature 10 to +80 °C
Operating temperature 10 to +60 °C



Description

The ICX055BL is an interline CCD solid-state image sensor suitable for CCIR B/W video cameras. Compared with the current product ICX055AL, sensitivity is improved drastically through the adoption of Super HAD CCD technology.

This chip of the ICX055BL features a field period readout system, and an electronic shutter with variable charge-storage time.
