ICX054BL

Features: • High sensitivity (+4dB at F8, +2dB at F1.2 compared with ICX054AL)• High saturation signal (+1dB compared with ICX054AL)• Low smear and low dark current• Excellent antiblooming characteristics• Continuous variable-speed shutter• Horizontal register: ...

product image

ICX054BL Picture
See larger image
SeekIC No. : 004371401 Detail

ICX054BL: Features: • High sensitivity (+4dB at F8, +2dB at F1.2 compared with ICX054AL)• High saturation signal (+1dB compared with ICX054AL)• Low smear and low dark current• Excellen...

ICX054BL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICX054BL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High sensitivity (+4dB at F8, +2dB at F1.2 compared with ICX054AL)
• High saturation signal (+1dB compared with ICX054AL)
• Low smear and low dark current
• Excellent antiblooming characteristics
• Continuous variable-speed shutter
• Horizontal register: 5V drive
• Reset gate: 5V drive


Pinout

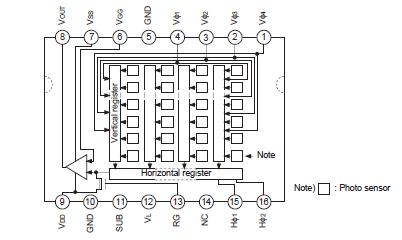

Connection Diagram


Specifications

Item

 Ratings Unit Remarks

Substrate clock SUB GND

 0.3 to +55 V
Supply voltage VDD, VOUT, VSS GND 0.3 to +18 V
VDD, VOUT, VSS SUB 55 to +10 V
Vertical clock input voltage V1, V2, V3, V4 GND 15 to +20 V
V1, V2, V3, V4 SUB to +10 V
Voltage difference between vertical clock input pins to +15 V *1
Voltage difference between horizontal clock input pins to +17 V
H1, H2 V4 17to +17 V
H1, H2, RG, VGG GND 10 to +15 V
H1, H2, RG, VGG SUB 55 to +10 V
VL SUB 65 to +0.3 V
V1, V2, V3, V4, VDD, VOUT VL 0.3 to +30 V
RG VL 0.3 to +24 V
VGG, Vss, H1, H2 VL 0.3 to +20 V
Storage temperature 30 to +80 °C
Operating temperature 10 to +60 °C
*1 +27V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX054BL is an interline CCD solid-state image sensor suitable for EIA B/W video cameras. Compared with the current product ICX054AL, sensitivity is improved drastically through the adoption of Super HAD CCD technology.

This chip of the ICX054BL features a field period readout system, and an electronic shutter with variable charge-storage time.
