Features:

• High sensitivity (+3dB compare with ICX044BLA) and low dark current
• Continuous variable-speed shutter 1/60s (Typ.), 1/100s to 1/10000s
• Low smear
• Excellent antiblooming characteristics
• Horizontal register: 5V drive
• Reset gate: 5V drive


Pinout

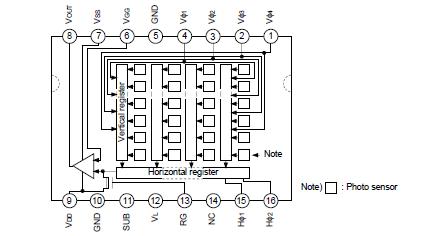

Connection Diagram


Specifications

Item Ratings Unit Remarks
Substrate voltage SUBGND 0.3 to +55 V
Supply voltage VDD, VOUT, VSS GND 0.3 to +18 V
VDD, VOUT, VSS SUB 55 to +10 V
Vertical clock input voltage V1, V2, V3, V4 GND 15 to +20 V
V1, V2, V3, V4 SUB to +10 V
Voltage difference between vertical clock input pins to +15 V *1
Voltage difference between horizontal clock input pins to +17 V
H1, H2 V4 17 to +17 V
H1, H2, RG, VGG GND 10 to +15 V
H1, H2, RG, VGG SUB 55 to +10 V
VLSUB 65 to +0.3 V
V1, V2, V3, V4, VDD, VOUT VL 0.3 to +30 v
RG VL 0.3 to +24 V
VGG, Vss, H1, H2 VL 0.3 to +20 V
Storage temperature 30 to +80 °C
Operating temperature 10 to +60 °C
*1 +27V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX054AL is an interline CCD solid-state image sensor suitable for EIA 1/3-inch B/W video cameras. High sensitivity is achieved through the adoption of HAD (Hole-Accumulation Diode) sensors.

This chip of the ICX054AL features a field period readout system, and an electronic shutter with variable chargestorage time.
