ICX054AK

Features: • High sensitivity (+3dB compare with ICX044BKA) and low dark current• Continuous variable-speed shutter 1/60s (Typ.), 1/100s to 1/10000s• Low smear• Excellent antiblooming characteristics• Ye, Cy, Mg and G complementary color mosaic filters on chip• H...

product image

ICX054AK Picture
See larger image
SeekIC No. : 004371398 Detail

ICX054AK: Features: • High sensitivity (+3dB compare with ICX044BKA) and low dark current• Continuous variable-speed shutter 1/60s (Typ.), 1/100s to 1/10000s• Low smear• Excellent anti...

ICX054AK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICX054AK
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High sensitivity (+3dB compare with ICX044BKA) and low dark current
• Continuous variable-speed shutter 1/60s (Typ.), 1/100s to 1/10000s
• Low smear
• Excellent antiblooming characteristics
• Ye, Cy, Mg and G complementary color mosaic filters on chip
• Horizontal register: 5V drive
• Reset gate:             5V drive


Pinout

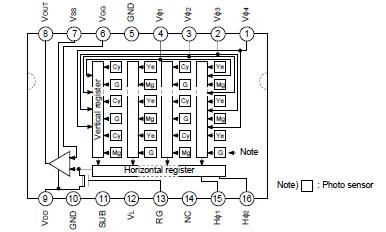

Connection Diagram


Specifications

Item Ratings Unit Remarks
Substrate voltage SUBGND 0.3 to +55 V
Supply voltage VDD, VOUT, VSS GND 0.3 to +18 V
VDD, VOUT, VSS SUB 55 to +10 V
Vertical clock input voltage V1, V2, V3, V4 GND 15 to +20 V
V1, V2, V3, V4 SUB to +10 V
Voltage difference between vertical clock input pins to +15 V *1
Voltage difference between horizontal clock input pins to +17 V
H1, H2 V4 17 to +17 V
H1, H2, RG, VGG GND 10 to +15 V
H1, H2, RG, VGG SUB 55 to +10 V
VLSUB 65 to +0.3 V
V1, V2, V3, V4, VDD, VOUT VL 0.3 to +30 v
RG VL 0.3 to +24 V
VGG, Vss, H1, H2 VL 0.3 to +20 V
Storage temperature 30 to +80 °C
Operating temperature 10 to +60 °C
*1 +27V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX054AK is an interline CCD solid-state image sensor suitable for NTSC 1/3-inch color video cameras. High sensitivity is achieved through the adoption of Ye, Cy, Mg and G complementary color mosaic filters and HAD (Hole-Accumulation Diode)
sensors.

This chip of the ICX054AK features a field period readout system, and an electronic shutter with variable chargestorage time.
