Features:

• Fully integrated PLL, no external loop filter requirements
• 1 differential 3.3V LVPECL output
• Crystal oscillator interface: 10MHz to 25MHz
• Output frequency range: 25MHz to 700MHz
• VCO range: 250MHz to 700MHz
• Parallel or serial interface for programming M and N dividers during power-up
• RMS Period jitter: 5ps (maximum)
• Cycle-to-cycle jitter: 40ps (maximum)
• 3.3V supply voltage
• 0°C to 70°C ambient operating temperature
• Pin compatible with the MC12430
• Lead-Free/Annealed package available
• Industrial temperature information available upon request


Pinout

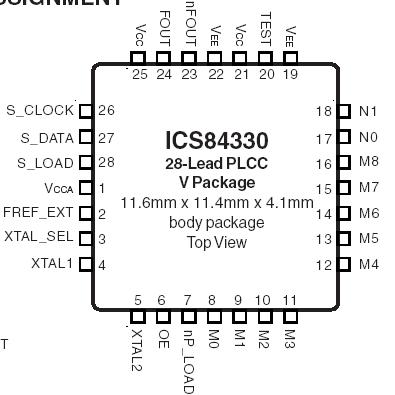

Connection Diagram


Specifications

Supply Voltage, VCC ........................................................4.6V
Inputs, VI ..............................................-0.5V to VCC + 0.5 V
Outputs, IO
Continuous Current...................................................... 50mA
Surge Current .............................................................100mA
Package Thermal Impedance, JA
32 Lead LQFP ...........................................47.9°C/W (0 lfpm)
28 Lead PLCC ...........................................37.8°C/W (0 lfpm)
Storage Temperature, TSTG........................ -65°C to 150°C


Description

The ICS84330 is a general purpose, single output high frequency synthesizer and a member of the HiPerClockS™ family of High Performance Clock Solutions from ICS. The VCO operates at a frequency range of 250MHz to 700MHz. The VCO and output frequency can be programmed using the serial or parallel interfaces to the configuration logic. The output of the ICS84330 can be configured to divide the VCO frequency by 1, 2, 4, and 8. Output frequency steps from 250KHz to 2MHz can be achieved using a 16MHz crystal depending on the output divider setting.
