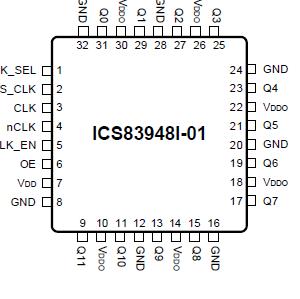

ICS83948I-01

Supply Voltage, V_DD                        4.6V
Inputs, V_I                                        -0.5V to V_DD + 0.5 V
Outputs, V_O                                     -0.5V to V_DDO + 0.5V
Package Thermal Impedance, _JA   47.9°C/W (0 lfpm)
Storage Temperature, T_stg              -65°C to 150°C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only. Functional operation of product at these conditions or any conditions beyond those listed in the DC Characteristics or AC Characteristics is not implied. Exposure to absolute maximum rating conditions for  xtended periods may affect product reliability.

The ICS83948I-01 is a low skew, 1-to-12 Differential- to-LVCMOS Fanout Buffer and a member of the HiPerClockS™ family of High Performance Clock Solutions from ICS. The ICS83948I-01 has two selectable clock inputs. The CLK, nCLK pair can accept most standard differential input levels. The LVCMOS_CLK can accept LVCMOS or LVTTL input levels. The low impedance LVCMOS outputs are designed to drive 50 series or parallel terminated transmission lines. The effective fanout can be increased from 12 to 24 by utilizing the ability of the outputs to drive two series terminated lines. The ICS83948I-01 is characterized at 3.3V core/3.3V output. Guaranteed output and part-to-part skew characteristics make the ICS83948I-01 ideal for those clock distribution applications demanding well defined performance and repeatability.
