Product Details

Description



Features:

• Eight LVCMOS/LVTTL outputs
  (19 typical output impedance)
• Two Crystal oscillator input pairs
  One LVCMOS/LVTTL clock input
• Crystal input frequencry range: 10MHz - 40MHz
• Output frequency: 200MHz (typical) CLK0
• Output Skew: TBD
• Part to Part Skew: TBD
• RMS phase jitter @ 25MHz (100Hz - 1MHz):
  0.22ps (typical) VDD = VDDO = 3.3V
  Offset Noise Power
  100Hz ............. -111.4 dBc/Hz
  1kHz ............. -139.9 dBc/Hz
  10kHz ............. -157.3 dBc/Hz
  100kHz ............. -157.5 dBc/Hz
• Supply Voltage Modes:
  (Core/Output)
  3.3V/3.3V
  3.3V/2.5V
  3.3V/1.8V
  2.5V/2.5V
  2.5V/1.8V
• -40°C to 85°C ambient operating temperature
• Available in both standard (RoHS 5) and lead-free (RoHS 6) packages

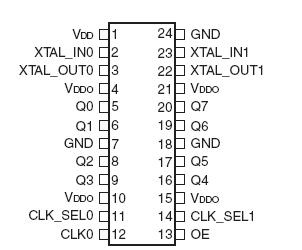

Pinout

Connection Diagram


Specifications

Supply Voltage, VDD ...................4.6V
Inputs, VI -0.5V to VDD................ + 0.5 V
Outputs, VO -0.5V to VDDO.............. + 0.5V
Package Thermal Impedance, JA... 84.6°C/W (0 mps)
Storage Temperature, TSTG........ -65°C to 150°C
NOTE: Stresses beyond those listed under Absolute
Maximum Ratings may cause permanent damage to the
device. These ratings are stress specifications only. Functional operation
of product at these conditions or any conditions beyond
those listed in the DC Characteristics or AC Characteristics is not
implied. Exposure to absolute maximum rating conditions for extended
periods may affect product reliability


Description

The ICS83908I-02 is a low skew, high performance1-to-8 Crystal Oscillator/3.3V LVCMOS-to-3.3V LVCMOS fanout buffer and a member of the HiPerClockS™ family of High Performance Clock Solutions from IDT. The ICS83908I-02 has selectable single ended clock or two crystal-oscillator inputs. There is an output enable to disable the outputs by placing them into a highimpedance state.

Guaranteed output and part-to-part skew characteristics make the ICS83908I-02 ideal for those applications demanding well defined performance and repeatability.
