ICS8302

Features:

• 2 LVCMOS / LVTTL outputs
• LVCMOS / LVTTL clock input accepts LVCMOS or LVTTL input levels
• Maximum output frequency: 200MHz
• Output skew: 25ps (typical)
• Part-to-part skew: 250ps (typical)
• Small 8 lead SOIC package saves board space
• Full 3.3V or 3.3V core, 2.5V supply modes
• 0°C to 70°C ambient operating temperature
• Lead-Free package available
• Industrial temperature information available upon request

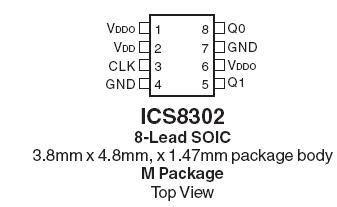

Pinout




Specifications

Supply Voltage, V_DD.............................................................. 4.6V
Inputs, VI -0.5V to V_DD ......................................................+ 0.5 V
Outputs, VO -0.5V to V_DDO .................................................+ 0.5V
Package Thermal Impedance, JA ...................112.7°C/W (0 lfpm)
Storage Temperature, T_STG .................................-65°C to 150°C


Description

The ICS8302 is a low skew, 1-to-2 LVCMOS Fanout Buffer and a member of the HiPerClockS™ family of High Performance Clock Solutions from ICS. The ICS8302 has a single ended clock input. The single ended clock input accepts LVCMOS or LVTTL input levels. The ICS8302 features a pair of LVCMOS/LVTTL outputs. The ICS8302 is characterized at full 3.3V for input V_DD, and mixed 3.3V and 2.5V for output operating supply modes (V_DDO). Guaranteed output and par t-to-part skew characteristics make the ICS8302 ideal for clock distribution applications demanding well defined performance and repeatibility.
