Product Details

Description



Features:

· 12/10/8-Bit Monotonic Dual DAC in 16 Lead QSOP Package
· Adjustable Output Gain
· Rail-to-Rail Voltage Output
· 150 µA per DAC at 5V Supply
· 100 µA per DAC at 3V Supply
· On Board Reference
· Serial Interface with three-wire SPI/QSPI and Microwire Interface Compatible
· Serial Data Out for Daisy-Chaining
· 8 µS Full scale Settling Time




Application

· Battery-Powered Applications
· Industrial Process Control
· Digital Gain and Offset Adjustment

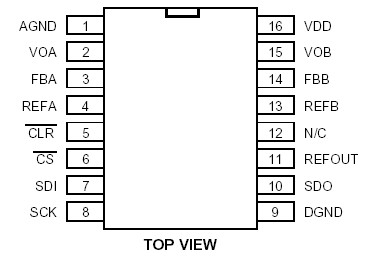

Pinout

Connection Diagram




Specifications

Symbol Parameter Value Unit
VDD

IIN

VIN_

VIN_REF

TSTG

TSOL		 Supply Voltage

Input Current

Digital Input Voltage (SCK, SDI,CS ,CLR )

Reference Input Voltage

Storage Temperature

Soldering Temperature		 -0.3 to 7.0

+/- 25.0

-0.3 to 7.0

-0.3 to 7.0

-65 to +150

300		 V

mA

V

V

°C

°C

Note: Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.






Description

The ICM7373 are Dual 12-Bit, 10- Bit and 8-Bit Rail-to-Rail voltage output DACs respectively, with guaranteed monotonic behavior. These DACs are available in 16 Lead QSOP package. They include adjustable output gain for ease of use and flexibility. The reference output is available on a separate pin and can be used to drive external loads. The operating supply range is 2.7V to 5.5V.

The input interface of the ICM7373 is an easy to use three-wire SPI/QSPI and Microwire compatible interface. The DAC has a double buffered digital input. And there is a serial data output port to allow daisy-chaining applications.
