Product Details

Description



Features:

• Four Digit Non-Multiplexed 7 Segment LCD Display Outputs with Backplane Driver
• Complete Onboard RC Oscillator to Generate Backplane Frequency
• Backplane Input/Output Allows Simple Synchronization of Slave-Devices to a Master
• ICM7211A Devices Provide Separate Digit Select Inputs to Accept Multiplexed BCD Input (Pinout and Functionally Compatible with Siliconix DF411)
• ICM7211AM Devices Provide Data and Digit Address Latches Controlled by Chip Select Inputs to Provide a Direct High Speed Processor Interface
• Decodes Binary to Code B (0-9, Dash, E, H, L, P, Blank)
• Available in Surface Mount Package

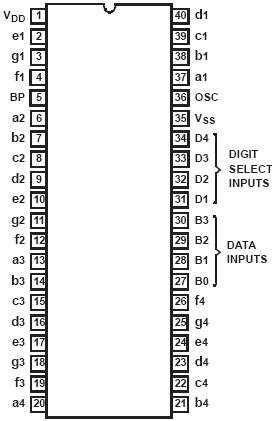

Pinout

  Connection Diagram




Specifications

Supply Voltage (VDD - VSS) . . . . . . . . . . . . . . . . . . . . . . . . . . .6.5V
Input Voltage (Any Terminal) (Note 1) . . VSS - 0.3V to VDD, + 0.3V





Description

The ICM7211A (LCD) device constitutes a family of non-multiplexed four-digit seven-segment CMOS display decoderdrivers.

The ICM7211A devices are configured to drive conventional LCD displays by providing a complete RC oscillator, divider chain, backplane driver, and 28 segment outputs.

The ICM7211A is available with multiplexed or microprocessor input configurations. The multiplexed versions provide four
data inputs and four Digit Select inputs. This configuration is suitable for interfacing with multiplexed BCD or binary output devices, such as the ICL7135. The microprocessor versions provide data input latches and Digit Address latches under control of high-speed Chip Select inputs. These devices simplify the task of implementing a cost-effective alphanumeric seven-segment display for microprocessor systems, without requiring extensive ROM or CPU time for decoding and display updating.

The ICM7211A provides the "Code B" output code, i.e., 0-9,dash, E, H, L, P, blank, but will correctly decode true BCD to seven-segment decimal outputs.
