Features:

• Two independent clock outputs ranging from 320 kHz to 100 MHz
• Individually programmable PLLs use 22-bit serial word
• Low-skew ¸1,¸2, and ¸4 CLKA outputs
• Phase-locked loop oscillator input derived from external low-frequency reference clock (1 MHz - 25 MHz) or external crystal (2 MHz - 24 MHz)
• Sophisticated internal loop-filter requires no external components or manufacturing tweaks as commonly required with external filters
• Three-state control disables outputs for test purposes (optional)
• 5V operation
• Low-power, high-speed CMOS technology
• Available in 16-pin SOIC package


Pinout

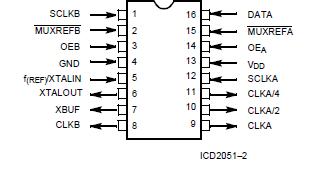

Connection Diagram


Specifications

(Above which the useful life may be impaired. For user guidelines,
not tested.)
Supply Voltage to Ground Potential .................-0.5V to +7.0V
DC Input Voltage ..................................... -0.5V to VDD +0.5V
Storage Temperature ....................................-65 to +150
Max soldering temperature (10 sec) ............................ 260
Junction temperature ................................................... 125
Package power dissipation................................. 525 mWatts


Description

The ICD2051 Programmable Clock Generator offers two fully user-programmable phase-locked loops in a single package.

The outputs of the ICD2051 may be changed "on the fly" to any desired frequency value between 320 kHz and 100 MHz. The ICD2051 is ideally suited for any design where one or more multiple or varying frequencies are required, thus replacing more expensive metal can oscillators.

The capability to dynamically change the output frequency adds a whole new degree of freedom for the electrical engineer.

Some examples of the uses for this ICD2051 include: laptop computers, in which slowing the speed of operation can mean less power consumption or speeding it up can mean faster operation; graphics board dot clocks to allow dynamic synchronization with different brands of monitors or display formats; and on-board test strategies where the ability to skew a system's desired frequency (for example ±10%) allows worst case evaluations.
