IC61LV12816

Features: • High-speed access time: 8, 10, 12, and 15 ns• CMOS low power operation• TTL and CMOS compatible interface levels• Single 3.3V ± 10%power supply• Fully static operation: no clock or refresh required• Three state outputs• Data control for upper a...

product image

IC61LV12816 Picture
See larger image
SeekIC No. : 004370401 Detail

IC61LV12816: Features: • High-speed access time: 8, 10, 12, and 15 ns• CMOS low power operation• TTL and CMOS compatible interface levels• Single 3.3V ± 10%power supply• Fully stati...

IC61LV12816 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IC61LV12816
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High-speed access time: 8, 10, 12, and 15 ns
• CMOS low power operation
• TTL and CMOS compatible interface levels
• Single 3.3V ± 10%power supply
• Fully static operation: no clock or refresh required
• Three state outputs
• Data control for upper and lower bytes
• Industrial temperature available

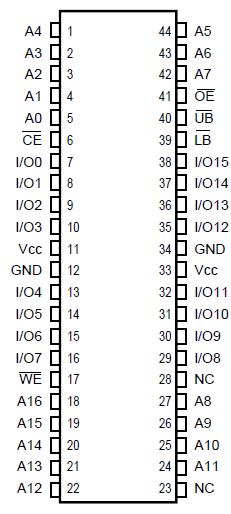

Pinout

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Power Supply Voltage Relative to GND
0.5 to 4.0
V
VTERM
 Terminal Voltage with Respect to GND
0.5 to Vcc+0.5
V
TSTG
 Storage Temperature
65 to +150
°C
TBIAS
 Temperature Under Bias: Com.
65 to +85
°C
 Ind.
45 to +90
PT
 Power Dissipation
2.0
W
IOUT
 DC Output Current (LOW)
+20
mA



Description

The ICSI IC61LV12816 is a high-speed, 2,097,152-bit static RAM organized as 131,072 words by 16 bits. It is fabricated using ICSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 8 ns with low power consumption.

When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels.

Easy memory expansion of the IC61LV12816 is provided by using Chip Enable and Output Enable inputs, CE and OE. The active LOW Write Enable (WE) controls both writing and reading of the memory.

A data byte allows Upper Byte (UB) and Lower Byte (LB) access.

The IC61LV12816 is packaged in the JEDEC standard 44-pin 400mil SOJ, 44-pin 400mil TSOP-2, and 48-pin 6*8mm TFBGA.
