Features: • All signals fully synchronous to the positiv edge of the system clock• Programmable burst lengths: 1, 2, 4, 8 or full page• Burst data transfer in sequential or interleaved order• Burst read with single write• ProgrammableCAS latency: 2, 3• 8 column ...
HYB 9S13620TQ-8: Features: • All signals fully synchronous to the positiv edge of the system clock• Programmable burst lengths: 1, 2, 4, 8 or full page• Burst data transfer in sequential or interle...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

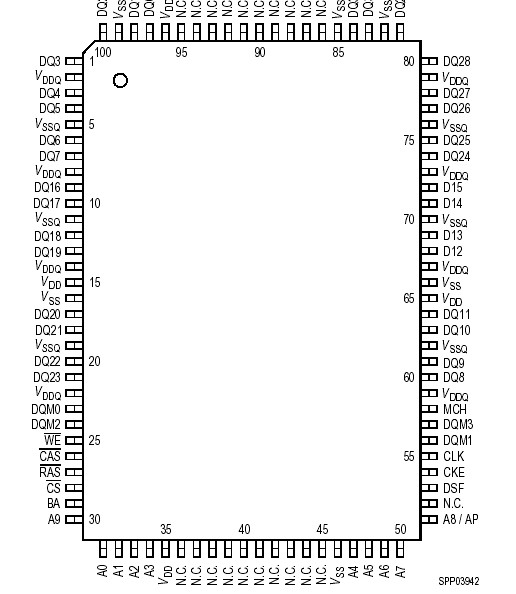

Pinout<IMG src= /uploadfile/ic-data/20081229221916883.jpg border=0>SpecificationsOperating ...
Pinout<IMG src= /uploadfile/ic-data/20081229221916883.jpg border=0>SpecificationsOperating ...
Pinout<IMG src= /uploadfile/ic-data/20081229221916883.jpg border=0>SpecificationsOperating ...
The HYB 9S13620TQ-8 are dual bank Synchronous Graphics DRAM's (SGRAM) organized as 2 banks x 256 Kbit x 32 with built-in graphics features. These synchronous devices achieve high speed data transfer rates up to 143 MHz by employing a chip architecture that prefetches multiple bits and then synchronizes the output data to a system clock. The chip is fabricated with an advanced 64MBit DRAM process technology.
The device HYB 9S13620TQ-8 is designed to comply with all JEDEC standards set for synchronous graphics DRAM products, both electrically and mechanically.
RAS, CAS, WE, DSF and CS are pulsed signals which are examined at the positive edge of each externally applied clock. Internal chip operating modes are defined by combinations of these signals. A ten bit address bus accepts address data in the conventional RAS/CAS multiplexing style. Ten row address bits (A0 - A9) and a bank select BA are strobed with RAS. Column address bits plus a bank select are strobed with CAS.
Prior to any access operation, the CAS latency, burst length and burst sequence must be programmed into the device by address inputs during a mode register set cycle. An Auto Precharge function may be enabled to provide a self-timed row precharge. This is initiated at the end of the burst sequence. In addition, HYB 9S13620TQ-8 features the write per bit, the block write and the masked block write functions. By having a programmable Mode register and Special Mode register, the system can select the best suitable modes to maximize its performance.
Operating the two memory banks in an interleave fashion allows random access operation to occur at higher rate than is possible with standard DRAMs HYB 9S13620TQ-8. A sequential and gapless data rate of up to 143 MHz is possible depending on burst length, CAS latency and speed grade of the device.
Auto Refresh (CBR) and Self Refresh operation are supported. These devices HYB 9S13620TQ-8 operate with a single 3.3 V ± 0.3 V power supply and are available in 100 pin TQFP package.
