HYB 514175BJ-60

Features:

* 262 144 words by 16-bit organization
* 0 to 70 C operating temperature
* Fast access and cycle time
* RAS access time:
50 ns (-50 version)
55 ns (-55 version)
60 ns (-60 version)
* CAS access time:
13 ns (-50 & -55 version)
15 ns (-60 version)
* Cycle time:
89 ns (-50 version)
94 ns (-55 version)
104 ns (-60 version)
* Hyper page mode (EDO) cycle time
20 ns (-50 & -55 version)
25 ns (-60 version)
* High data rate
50 MHz (-50 & -55 version)
40 MHz (-60 version)
* Single + 5 V ( 10 %) supply with a built-in V_BB generator
* Low Power dissipation
max. 1100 mW active (-50 version)
max. 1045 mW active (-55 version)
max. 935 mW active (-60 version)
* Standby power dissipation
11 mW standby (TTL)
5.5 mW max. standby (CMOS)
* Output unlatched at cycle end allows
two-dimensional chip selection
* Read, write, read-modify write, CAS-before-RAS refresh, RAS-only refresh, hidden-refresh and hyper page (EDO) mode capability
*2 CAS/1 WE control
* All inputs and outputs TTL-compatible
* 512 refresh cycles/16 ms
* Plastic Packages:
P-SOJ-40-1 400 mil width

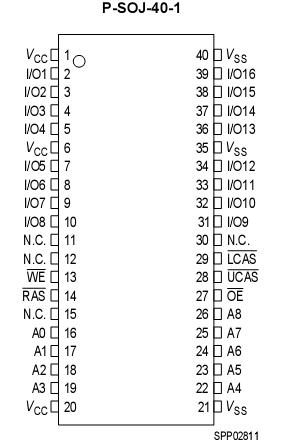

Pinout




Specifications

Operating temperature range ................................................................... 0 to + 70
Storage temperature range............................................................... 55 to + 150
Input/output voltage................................................................................ 1 to + 6 V
Power supply voltage............................................................................... 1 to + 6 V
Data out current (short circuit).......................................................................... 50 mA


Description

The HYB 514175BJ-60 is the new generation dynamic RAM organized as 262 144 words by 16-bit. The HYB 514175BJ utilizes CMOS silicon gate process as well as advanced circuit techniques to provide wide operation margins, both internally and for the system user. Multiplexed address inputs permit the HYB 514175BJ to be packed in a standard plastic 400 mil wide P-SOJ-40-1 package.

This package size provides high system bit densities and is compatible with commonly used automatic testing and insertion equipment. HYB 514175BJ-60 System oriented features include single + 5 V ( 10 %) power supply, direct interfacing with high performance logic device families such as Schottky TTL.
