HYB 314175BJL-65

Features: • 262 144 words by 16-bit organization• 0 to 70 operating temperature• Fast access and cycle time• RAS access time: 50 ns (-50 version) 55 ns (-55 version) 60 ns (-60 version)• CAS access time: 13ns (-50 & -55 version) 15 ns (-60 version)• Cycle t...

product image

HYB 314175BJL-65 Picture
See larger image
SeekIC No. : 004368436 Detail

HYB 314175BJL-65: Features: • 262 144 words by 16-bit organization• 0 to 70 operating temperature• Fast access and cycle time• RAS access time: 50 ns (-50 version) 55 ns (-55 version) 60 ns (...

HYB 314175BJL-65 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HYB 314175BJL-65
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 262 144 words by 16-bit organization
• 0 to 70 operating temperature
• Fast access and cycle time
• RAS access time:
  50 ns (-50 version)
  55 ns (-55 version)
  60 ns (-60 version)
• CAS access time:
  13ns (-50 & -55 version)
  15 ns (-60 version)
• Cycle time:
  89 ns (-50 version)
  94 ns (-55 version)
  104 ns (-60 version)
• Hype page mode (EDO) cycle time
  20 ns (-50 & -55 version)
  25 ns (-60 version)
• High data rate
  50 MHz (-50 & -55 version)
  40 MHz (-60 version)
• Single + 3.3 V (±0.3 V) supply with a builtin VBB generator
• Low Power dissipation
  max. 450 mW active (-50 version)
  max. 432 mW active (-55 version)
  max. 378 mW active (-60 version)
• Standby power dissipation
  7.2 mW standby (TTL)  3.6 mW max. standby (CMOS)
  0.72 mW max. standby (CMOS) for  Low Power Version
• Output unlatched at cycle end allows twodimensional chip selection
• Read, write, read-modify write, CASbefore-
  RAS refresh, RAS-only refresh, hidden-refresh and hyper page (EDO) mode capability
• 2 CAS / 1 WE control
• Self Refresh (L-Version)
• All inputs and outputs TTL-compatible
• 512 refresh cycles / 16 ms
• 512 refresh cycles / 128 ms
  Low Power Version only
• Plastic Packages:P-SOJ-40-1 400mil width

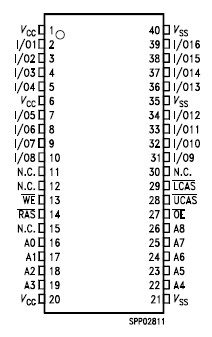

Pinout

Connection Diagram


Specifications

Operating temperature range 0 to + 70
Storage temperature range 55 to + 150
Input/output voltage 1 to (VCC + 0.5, 4.6) V
Power supply voltage 1 to + 4.6 V
Data out current (short circuit) 50 mA


Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage of the device. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.




Description

The HYB 314175BJL-65 is the new generation dynamic RAM organized as 262 144 words by 16-bit. The HYB 314175BJ/BJL utilizes CMOS silicon gate process as well as advanced circuit techniques to provide wide operation margins, both internally and for the system user. Multiplexed address inputs permit the HYB 314175BJ/BJL to be packed in a standard plastic 400mil wide P-SOJ-40-1 package. This package size provides high system bit densities and is compatible with commonly used automatic testing and insertion equipment.HYB 314175BJL-65 System oriented features include Self Refresh (L-Version), single + 3.3 V (± 0.3 V) power supply, direct interfacing with high performance logic device families.
