HY5DU281622ET

 2.8V +/- 0.1V VDD and VDDQ power supply
   supports 400/375/350/333/300MHz
2.5V +/- 5% VDD and VDDQ power supply
   supports 275/250/200/166MHz
All inputs and outputs are compatible with SSTL_2
   interface

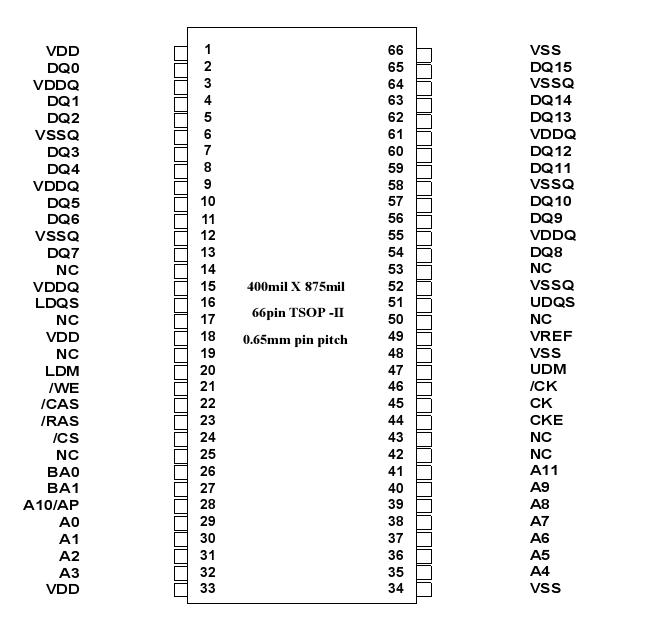

JEDEC Standard 400 mil x 875 mil 66 Pin TSOP II,
    with 0.65mm pin pitch
Fully differential clock inputs (CK, /CK) operation
Double data rate interface
Source synchronous - data transaction aligned to
    bidirectional data strobe (UDQS,LDQS)
Data outputs on DQS edges when read (edged DQ)
   Data inputs on DQS centers when write (centered
   DQ)
Data(DQ) and Write masks(DM) latched on the both

   rising and falling edges of the data strobe

All addresses and control inputs except Data, Data
   strobes and Data masks latched on the rising edges
   of the clock
Write mask byte controls by DM (UDM,LDM)
Programmable /CAS Latency 5, 4 and 3 are sup-
   ported
Programmable Burst Length 2, 4 and 8 with both
   sequential and interleave mode
Internal 4 bank operation with single pulsed /RAS
tRAS Lock-Out function are supported
Auto refresh and self refresh are supported
4096 refresh cycles / 32ms
Full strength, Half strength and Weak Impedance
   driver options controlled by EMRS

The Hynix HY5DU281622ET is a 134,217,728-bit CMOS Double Data Rate(DDR) Synchronous DRAM, ideally suited for the point-to-point applications which require high densities and high bandwidth.

The Hynix 8Mx16 DDR SDRAMs HY5DU281622ET offer fully synchronous operations referenced to both rising and falling edges of the clock. While all addresses and control inputs are latched on the rising edges of the CK (falling edges of the /CK), Data, Data strobes and Write data masks inputs are sampled on both rising and falling edges of it. The data paths are inter- nally pipelined and 2-bit prefetched to achieve very high bandwidth. All input and output voltage levels are compatible with SSTL_2.
