HWS486

Features: ·Low Insertion Loss : 0.50 dB @ 2.7 GHz0.60 dB @ 5.8 GHz·Isolation: 29 dB @ 2.7 GHz22 dB @ 5.8 GHz·Low DC Power Consumption· Miniature ETSLP (1.5x1.5 mm) Plastic Lead(Pb) Free and RoHS Compliant Package·PHEMT processPinoutSpecifications Parameter Absolute Maximum RF Input Powe...

product image

HWS486 Picture
See larger image
SeekIC No. : 004368048 Detail

HWS486: Features: ·Low Insertion Loss : 0.50 dB @ 2.7 GHz0.60 dB @ 5.8 GHz·Isolation: 29 dB @ 2.7 GHz22 dB @ 5.8 GHz·Low DC Power Consumption· Miniature ETSLP (1.5x1.5 mm) Plastic Lead(Pb) Free and RoHS Com...

HWS486 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HWS486
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Low Insertion Loss : 0.50 dB @ 2.7 GHz
0.60 dB @ 5.8 GHz
·Isolation: 29 dB @ 2.7 GHz
22 dB @ 5.8 GHz
·Low DC Power Consumption
· Miniature ETSLP (1.5x1.5 mm) Plastic Lead
(Pb) Free and RoHS Compliant Package
·PHEMT process




Pinout

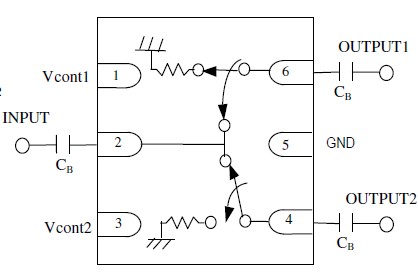

Connection Diagram




Specifications

Parameter
Absolute Maximum
RF Input Power
+36 dBm @ +3V
Control Voltage
+6V
Operating Temperature
-40 to +85
Storage Temperature
-65 to +150





Description

The HWS486 is a GaAs PHEMT MMIC SPDT switch operating at DC-6 GHz in a miniature ETSLP(1.5 x 1.5 mm) plastic lead (Pb) free package.

The HWS486 features low insertion loss and high isolation with very low DC power consumption. This switch can be used in WiMAX or IEEE 802.11a/b/g WLAN PC card and access point applications as transmit/receive switch, antenna diversity switch, or band-selection switch.
