HWS408

Features: • Low Insertion Loss: 0.4 dB @ 2.5 GHz• Isolation: 25 dB @ 2.5 GHz• Low DC Power Consumption• Low Cost SOT-363 Plastic Lead (Pb) Free Package• Lead Free and RoHS (Restrict of Hazardous Substances) Compliant Version of HWS314PinoutSpecifications Paramete...

product image

HWS408 Picture
See larger image
SeekIC No. : 004368018 Detail

HWS408: Features: • Low Insertion Loss: 0.4 dB @ 2.5 GHz• Isolation: 25 dB @ 2.5 GHz• Low DC Power Consumption• Low Cost SOT-363 Plastic Lead (Pb) Free Package• Lead Free and R...

HWS408 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HWS408
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low Insertion Loss: 0.4 dB @ 2.5 GHz
• Isolation: 25 dB @ 2.5 GHz
• Low DC Power Consumption
• Low Cost SOT-363 Plastic Lead (Pb) Free Package
• Lead Free and RoHS (Restrict of Hazardous Substances) Compliant Version of HWS314




Pinout

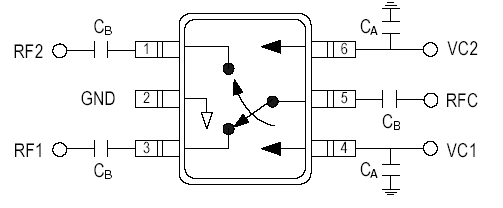

Connection Diagram




Specifications

Parameter Absolute Maximum
RF Input Power 0.5-2.5 GHz

Control Voltage

Operating Temperature

Storage Temperature		 +34 dBm

+6V

-40 to +85

-65 to +150





Description

The HWS408 is a GaAs SPDT switch operating at DC-3 GHz in a low cost SOT-363 plastic lead (Pb) free package. The features low insertion loss with very low DC power consumption. This switch can be used in many wireless digital communication systems like IEEE 802.11b/g WLAN and Bluetooth for transmit/receive selection or antenna diversity function.
