HWS466

Features: • Low Insertion Loss : 0.50 dB @ 2.7 GHz 0.60 dB @ 3.9 GHz• Isolation: 25.0 dB @ 2.7 GHz 25.0 dB @ 3.9 GHz• Low DC Power Consumption• Miniature SON6L (2x3 mm) Plastic Lead (Pb) Free Package, RoHS Compliant• PHEMT processPinoutSpecificationsRF Input Power +36...

product image

HWS466 Picture
See larger image
SeekIC No. : 004368045 Detail

HWS466: Features: • Low Insertion Loss : 0.50 dB @ 2.7 GHz 0.60 dB @ 3.9 GHz• Isolation: 25.0 dB @ 2.7 GHz 25.0 dB @ 3.9 GHz• Low DC Power Consumption• Miniature SON6L (2x3 mm) Plast...

HWS466 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HWS466
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low Insertion Loss : 0.50 dB @ 2.7 GHz 0.60 dB @ 3.9 GHz
• Isolation: 25.0 dB @ 2.7 GHz 25.0 dB @ 3.9 GHz
• Low DC Power Consumption
• Miniature SON6L (2x3 mm) Plastic Lead (Pb) Free Package, RoHS Compliant
• PHEMT process




Pinout

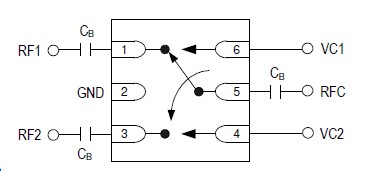

Connection Diagram




Specifications

RF Input Power +36 dBm @...... +3V
Control Voltage .............+6V
Operating Temperature . -40°C to +85°C
Storage Temperature ..-65°C to +150°C




Description

The HWS466 is a GaAs PHEMT MMIC SPDT switch operating at DC-6 GHz in a low costminiature SON6L (2 x 3 mm) plastic lead (Pb) free package. It features low insertion loss and high linearity with very low DC power consumption. This switch can be used in WiMAX or IEEE 802.11a/b/g WLAN PC card and access point applications as transmit/receive switch, antenna diversity switch, or band-selection switch.
