HWS435

Features: • Low Insertion Loss: 0.5 dB @ 2.5 GHz• Isolation: 20 dB @ 2.5 GHz• Low DC Power Consumption• Low Cost SOT-363 Plastic Lead (Pb) Free Package, RoHS CompliantPinoutSpecificationsRF Input Power0.5-2.5 GHz..............+34 dBmControl Voltage ..............+6VOperatin...

product image

HWS435 Picture
See larger image
SeekIC No. : 004368035 Detail

HWS435: Features: • Low Insertion Loss: 0.5 dB @ 2.5 GHz• Isolation: 20 dB @ 2.5 GHz• Low DC Power Consumption• Low Cost SOT-363 Plastic Lead (Pb) Free Package, RoHS CompliantPinoutS...

HWS435 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HWS435
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low Insertion Loss: 0.5 dB @ 2.5 GHz
• Isolation: 20 dB @ 2.5 GHz
• Low DC Power Consumption
• Low Cost SOT-363 Plastic Lead (Pb) Free Package, RoHS Compliant




Pinout

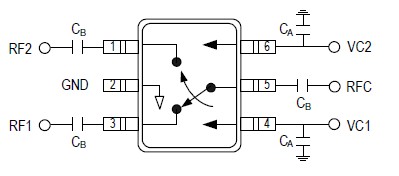

Connection Diagram




Specifications

RF Input Power
0.5-2.5 GHz..............+34 dBm
Control Voltage ..............+6V
Operating Temperature.. -40°C to +85°C
Storage Temperature.. -65°C to +150°C




Description

The HWS435 is a GaAs SPDT switch operating at DC-2.5 GHz in a low cost SOT-363 plastic lead (Pb) free package. It features low insertion loss with very low DC power consumption. This switch can be used in IEEE 802.11b/g WLAN systems for transmit/receive or antenna diversity functions.
